1971876 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PLUG HSG 9POS 6.00MM

Part	Pitch [x]	Pitch [x]	Number of Positions	Note	Contact Type	Number of Rows	Fastening Type	Insulation Material	Connector Type	Row Spacing	Row Spacing	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color
TE Connectivity Raychem Cable Protection 4-1971876-3	0.236 in	6 mm	9	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Yellow

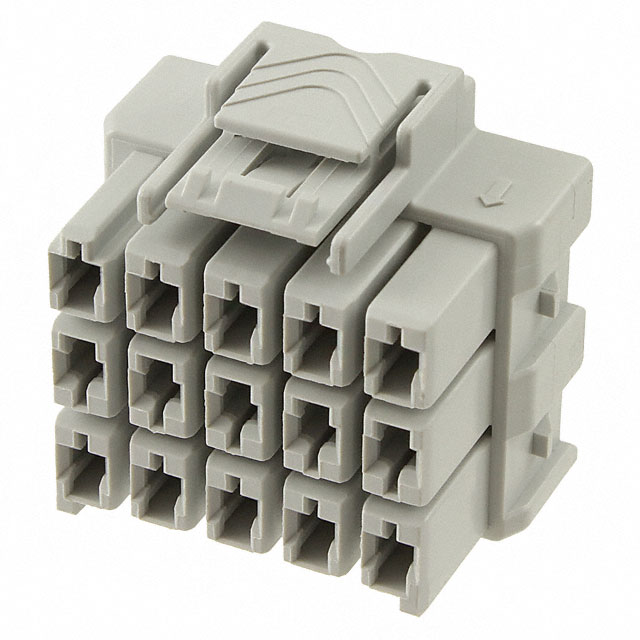

TE Connectivity Raychem Cable Protection 5-1971876-7	0.236 in	6 mm	15	Contacts Not Included	Female Blade Socket	3	Latch Holder	Nylon Polyamide (PA)	Plug	8.1 mm	0.319 in	Crimp	150 °C	-55 °C	Free Hanging (In-Line)	Gray

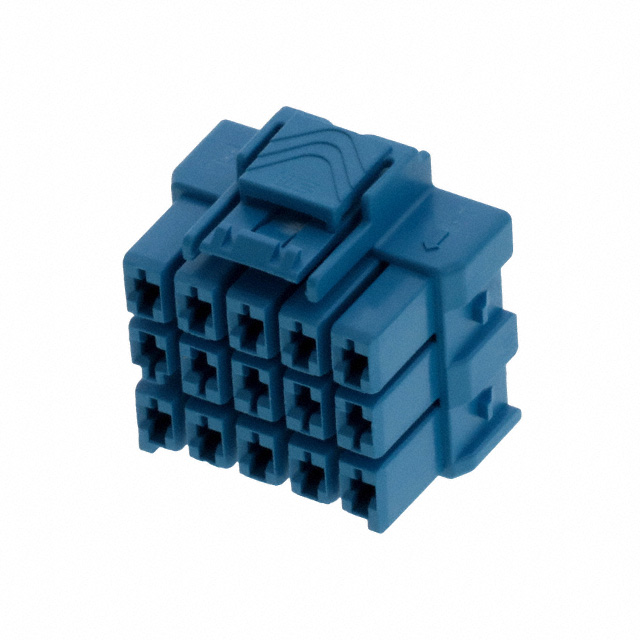

TE Connectivity Raychem Cable Protection 3-1971876-7	0.236 in	6 mm	15	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Blue

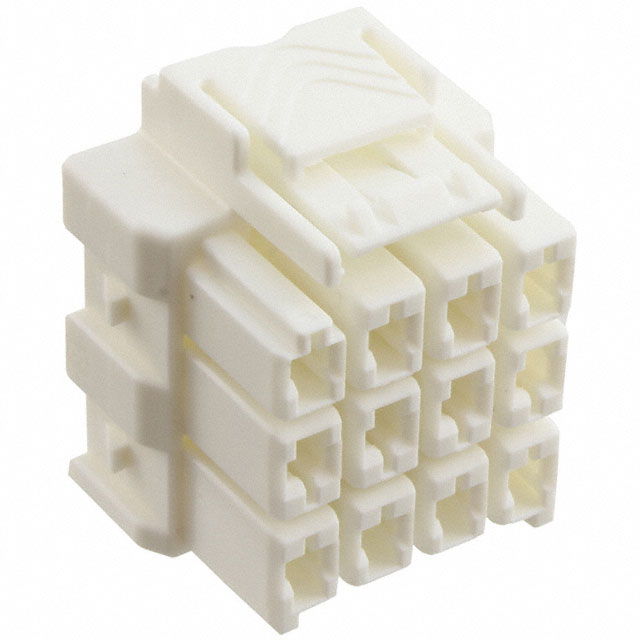

TE Connectivity Raychem Cable Protection 1-1971876-4	0.236 in	6 mm	12	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Natural
TE Connectivity Raychem Cable Protection 6-1971876-3	0.236 in	6 mm	9	Contacts Not Included	Female Blade Socket	3	Latch Holder	Nylon Polyamide (PA)	Plug	8.1 mm	0.319 in	Crimp	150 °C	-55 °C	Free Hanging (In-Line)	Red

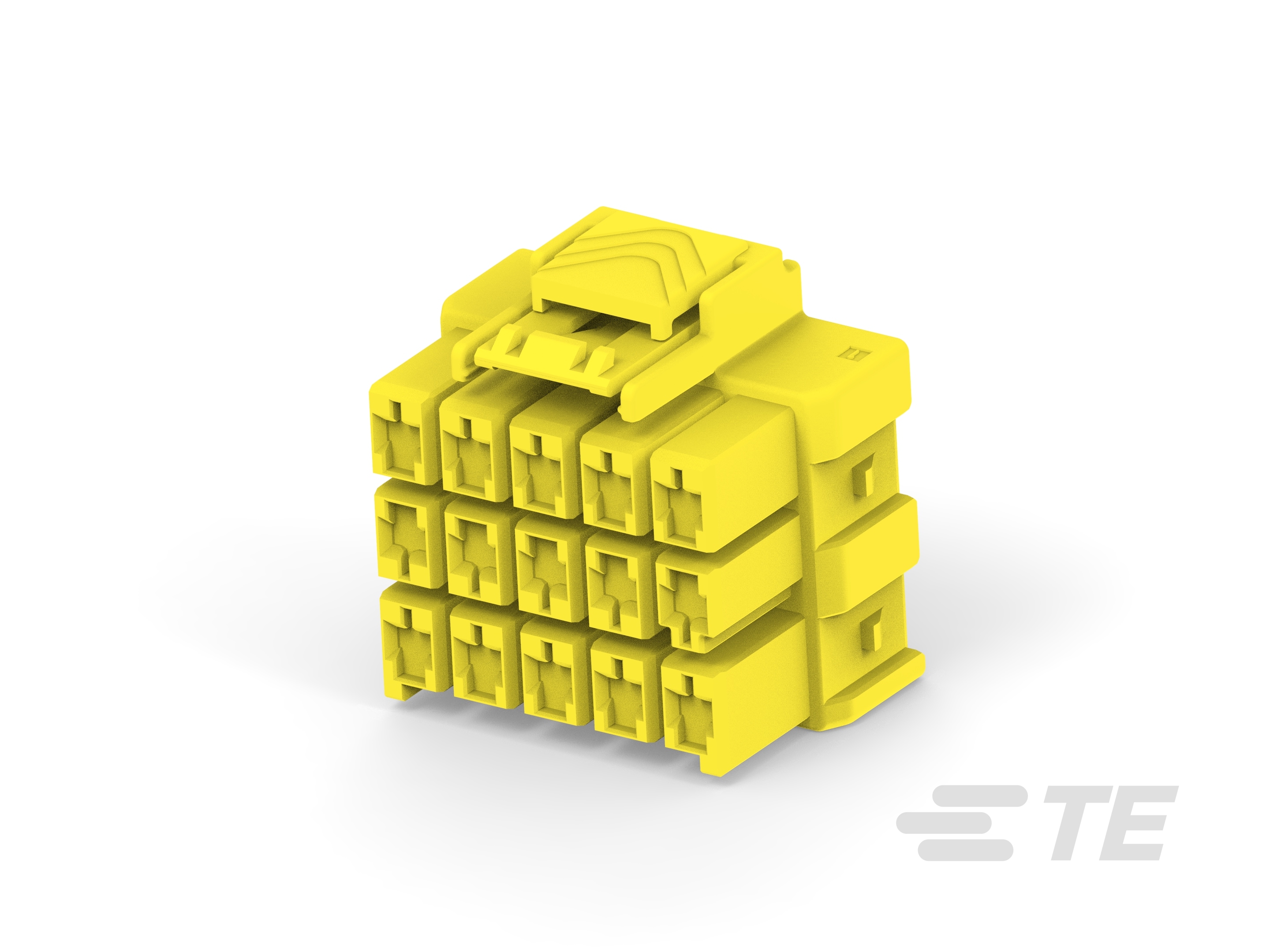

TE Connectivity Raychem Cable Protection 4-1971876-7	0.236 in	6 mm	15	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Yellow
TE Connectivity Raychem Cable Protection 2-1971876-7	0.236 in	6 mm	15	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Purple
TE Connectivity Raychem Cable Protection 2-1971876-3	0.236 in	6 mm	9	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Purple
TE Connectivity Raychem Cable Protection 8-1971876-3	0.236 in	6 mm	9	Contacts Not Included	Female Blade Socket	3	Latch Holder	Nylon Polyamide (PA)	Plug	8.1 mm	0.319 in	Crimp	150 °C	-55 °C	Free Hanging (In-Line)	Natural
TE Connectivity Raychem Cable Protection 3-1971876-3	0.236 in	6 mm	9	Contacts Not Included	Female Blade Socket	3	Latch Holder	Polybutylene Terephthalate (PBT) Glass Filled	Plug	8.1 mm	0.319 in	Crimp	105 ░C	-55 °C	Free Hanging (In-Line)	Blue
