AB15AV Series

Catalog

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Part	Electrical Life	Mechanical Life	Termination Style	Switch Function	Mounting Type	Voltage Rating - AC	Actuator Type	Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Circuit	Voltage Rating - DC	Features	Actuator Marking
NKK Switches AB15AV-HB	50000 Cycles	50000 Cycles	PC Pin	On-Mom	Right Angle Through Hole Vertical	28 V	Button Round	Standard	0.4 VA	85 °C	-30 ░C	White	SPDT	28 V	Sealed - Fully	No Marking
NKK Switches AB15AV-FC	50000 Cycles	50000 Cycles	PC Pin	On-Mom	Right Angle Through Hole Vertical	28 V	Button Round	Standard	0.4 VA	85 °C	-30 ░C	Red	SPDT	28 V	Sealed - Fully	No Marking

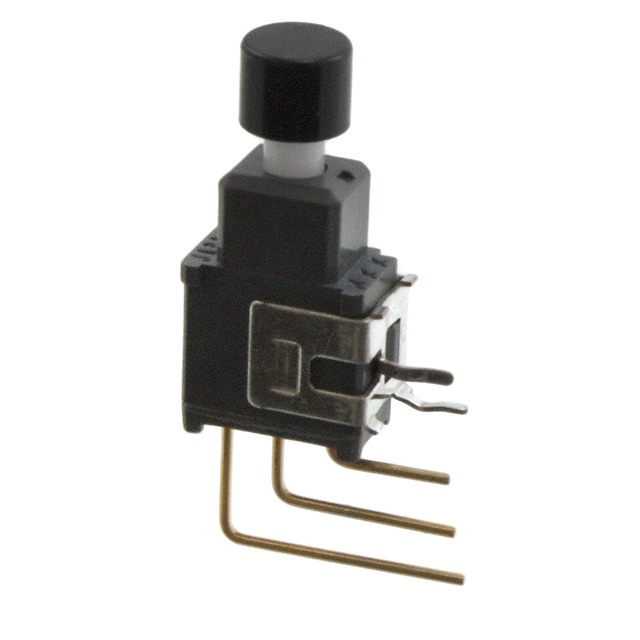

NKK Switches AB15AV-FA	50000 Cycles	50000 Cycles	PC Pin	On-Mom	Right Angle Through Hole Vertical	28 V	Button Round	Standard	0.4 VA	85 °C	-30 ░C	Black	SPDT	28 V	Sealed - Fully	No Marking
NKK Switches AB15AV-HA	50000 Cycles	50000 Cycles	PC Pin	On-Mom	Right Angle Through Hole Vertical	28 V	Button Round	Standard	0.4 VA	85 °C	-30 ░C	Black	SPDT	28 V	Sealed - Fully	No Marking

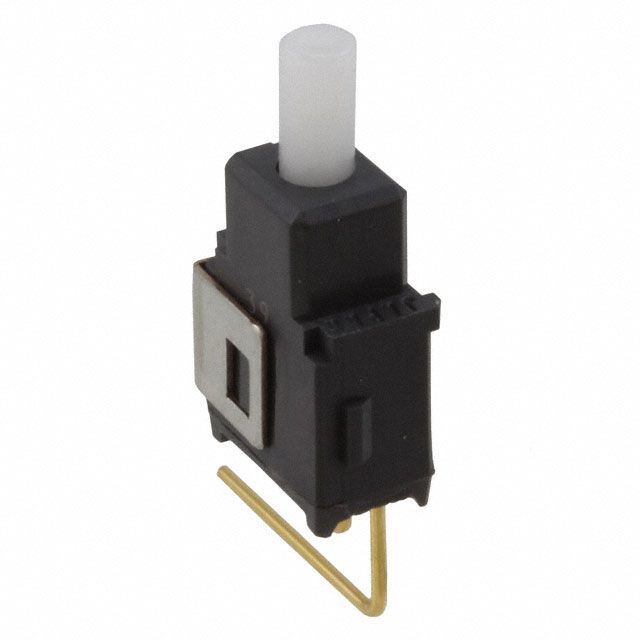

NKK Switches AB15AV1	50000 Cycles	50000 Cycles	PC Pin	On-Mom	Right Angle Through Hole Vertical	28 V	Plunger for Cap	Standard	0.4 VA	85 °C	-30 ░C	White	SPDT	28 V	Sealed - Fully	No Marking
