G1338 Series

Catalog

FAN AXIAL 127X38MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Width [y]	Air Flow	Air Flow	Weight	Weight	Noise	Bearing Type	Fan Type	Static Pressure	Static Pressure	Termination	Voltage - Rated	RPM	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Features
Mechatronics Fan Group G1338H24B1-FSR-WS	Polybutylene Terephthalate (PBT)	650 mA	38 mm	3.95 m³/min	141 CFM	355.62 g	0.784 lb	49 dB	Ball	Tubeaxial	147 Pa	0.59 in H2O	4 Wire Leads	24 VDC	3200 RPM	CE cUL TUV UL	5 in	5 "	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G1338S12B1-FSR-TTL	Polybutylene Terephthalate (PBT)	0.35 A	38 mm	2.44 m³/min	87 CFM	355.62 g	0.784 lb	37 dB	Ball	Tubeaxial	59.8 Pa	0.24 in H2O	3 Wire Leads	12 VDC	2000 RPM	CE cUL TUV UL	5 in	5 "	Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G1338M48B-FS	Polybutylene Terephthalate (PBT)	0.25 A	38 mm	3.42 m³/min	122.1 CFM	355.62 g	0.784 lb	46 dB(A)	Ball	Tubeaxial	114.6 Pa	0.46 in H2O	2 Wire Leads	48 VDC	2800 RPM	CE cUL TUV UL	5 in	5 "	Thermal Overload Protector (TOP)
Mechatronics Fan Group G1338L24B-FSR	Polybutylene Terephthalate (PBT)	0.33 A	38 mm	2.97 m³/min	106 CFM	355.62 g	0.784 lb	42 dB	Ball	Tubeaxial	87.2 Pa	0.35 in H2O	2 Wire Leads	24 VDC	2400 RPM	CE cUL TUV UL	5 in	5 "	Thermal Overload Protector (TOP)

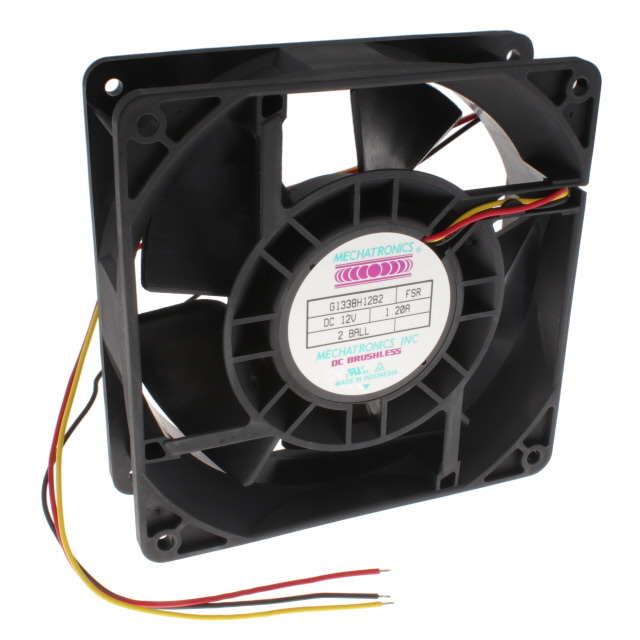

Mechatronics Fan Group G1338H12B2-FSR	Polybutylene Terephthalate (PBT)	1.2 A	38 mm	3.95 m³/min	141 CFM	355.62 g	0.784 lb	49 dB	Ball	Tubeaxial	147 Pa	0.59 in H2O	3 Wire Leads	12 VDC	3200 RPM	CE cUL TUV UL	5 in	5 "	Locked Rotor Sensor Thermal Overload Protector (TOP)
Mechatronics Fan Group G1338H12B-FSR	Polybutylene Terephthalate (PBT)	1.2 A	38 mm	3.95 m³/min	141 CFM	355.62 g	0.784 lb	49 dB	Ball	Tubeaxial	147 Pa	0.59 in H2O	2 Wire Leads	12 VDC	3200 RPM	CE cUL TUV UL	5 in	5 "	Thermal Overload Protector (TOP)
Mechatronics Fan Group G1338H12B1-FSR	Polybutylene Terephthalate (PBT)	1.2 A	38 mm	3.95 m³/min	141 CFM	355.62 g	0.784 lb	49 dB	Ball	Tubeaxial	147 Pa	0.59 in H2O	3 Wire Leads	12 VDC	3200 RPM	CE cUL TUV UL	5 in	5 "	Speed Sensor (Tach) Thermal Overload Protector (TOP)
