2232001 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

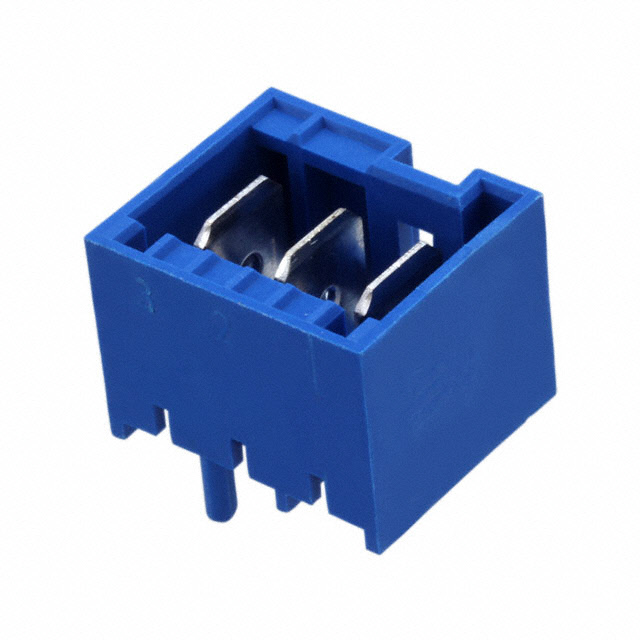

CONN HEADER VERT 3POS 5MM
| Part | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Applications | Features | Insulation Material | Material Flammability Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Type | Connector Type | Current Rating (Amps) | Number of Rows | Mounting Type | Insulation Color | Contact Finish - Mating | Contact Finish - Post | Termination | Contact Material | Style | Voltage Rating | Fastening Type | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | -40 °C | 120 °C | 5 mm | 0.197 " | General Purpose | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | UL94 V-0 | All | 12.8 mm | 0.504 in | 3.5 mm | 0.138 in | Tab | Header | 20 A | 1 | Through Hole | Black | Silver | Silver | Solder | Copper Alloy | Board to Cable/Wire | 250 VAC | Latch Holder | Rectangular | |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | -40 °C | 120 °C | 5 mm | 0.197 " | General Purpose | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | UL94 V-0 | All | 12.8 mm | 0.504 in | 3.5 mm | 0.138 in | Tab | Header | 20 A | 1 | Through Hole | Black | Silver | Silver | Solder | Copper Alloy | Board to Cable/Wire | 250 VAC | Latch Holder | Rectangular | 4 |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | -40 °C | 120 °C | 5 mm | 0.197 " | General Purpose | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | UL94 V-0 | All | 12.8 mm | 0.504 in | 3.5 mm | 0.138 in | Tab | Header | 20 A | 1 | Through Hole | Black | Silver | Silver | Solder | Copper Alloy | Board to Cable/Wire | 250 VAC | Latch Holder | Rectangular | 2 |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | -40 °C | 120 °C | 5 mm | 0.197 " | General Purpose | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | UL94 V-0 | All | 12.8 mm | 0.504 in | 3.5 mm | 0.138 in | Tab | Header | 20 A | 1 | Through Hole | Black | Silver | Silver | Solder | Copper Alloy | Board to Cable/Wire | 250 VAC | Latch Holder | Rectangular | 2 |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | -40 °C | 120 °C | 5 mm | 0.197 " | General Purpose | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | UL94 V-0 | All | 12.8 mm | 0.504 in | 3.5 mm | 0.138 in | Tab | Header | 20 A | 1 | Through Hole | Black | Silver | Silver | Solder | Copper Alloy | Board to Cable/Wire | 250 VAC | Latch Holder | Rectangular | 2 |
