D4B-4 Series

Catalog

SWITCH SNAP ACT DPST-NC 10A 120V

Part	Mechanical Life	Electrical Life	Overtravel	Pretravel	Voltage Rating - DC	Operating Position	Ingress Protection	Release Force	Switch Function	Voltage Rating - AC	Operating Force	Termination Style	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Overtravel	Pretravel	Operating Position [custom]	Operating Position [custom]	Operating Position [x]	Operating Position [x]

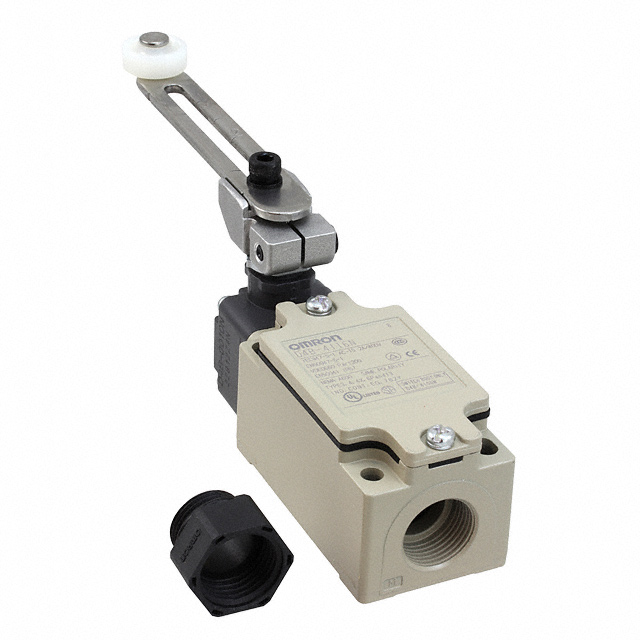

Omron Electronics Inc-EMC Div D4B-4A16NNPT	10000000 Cycles	500000 Cycles	50 °	21 °	30 V	21 °	IP67 - Dust Tight Waterproof	150 gf	On-Mom	120 V	960 gf	Screw Terminal	Chassis Mount	Side Rotary Adjustable Roller	-40 °C	80 C	DPST-NC

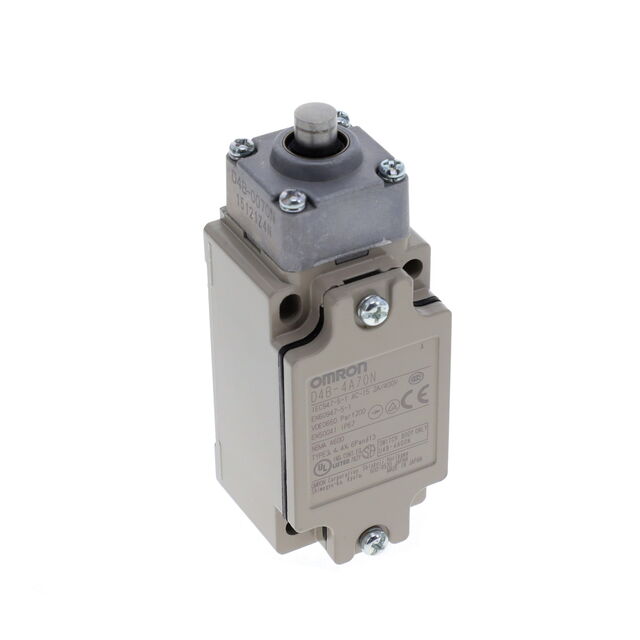

Omron Electronics Inc-EMC Div D4B-4A70N	10000000 Cycles	500000 Cycles	0.197 "	0.08 in	30 V		IP67 - Dust Tight Waterproof	200 gf	On-Mom	120 V	1900 gf	Screw Terminal	Chassis Mount	Round (Pin Plunger)	-40 °C	80 C	DPST-NC	5 mm	2 mm	35 mm	1.38 in
Omron Electronics Inc-EMC Div D4B-4A15N-NPT

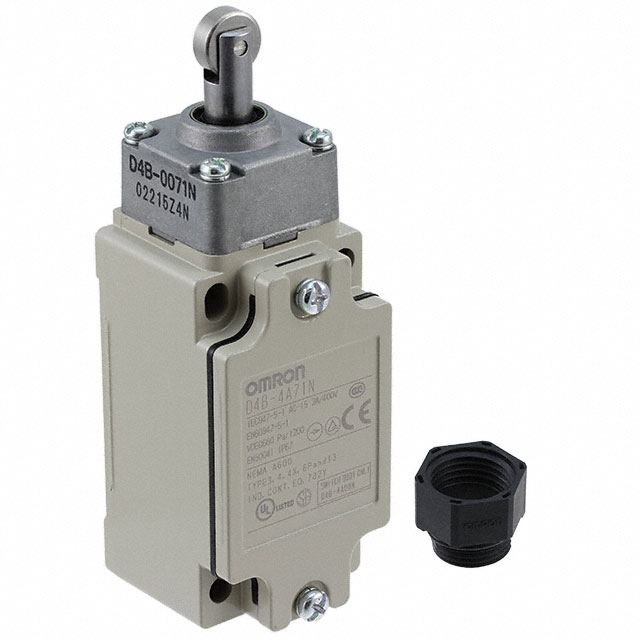

Omron Electronics Inc-EMC Div D4B-4A71N-NPT	10000000 Cycles	500000 Cycles	0.197 "	0.08 in	30 V		IP67 - Dust Tight Waterproof	200 gf	On-Mom	120 V	1900 gf	Screw Terminal	Chassis Mount	Roller Plunger	-40 °C	80 C	DPST-NC	5 mm	2 mm			48 mm	1.89 in
Omron Electronics Inc-EMC Div D4B-4A71N	10000000 Cycles	500000 Cycles	0.197 "	0.08 in	30 V		IP67 - Dust Tight Waterproof	200 gf	On-Mom	120 V	1900 gf	Screw Terminal	Chassis Mount	Roller Plunger	-40 °C	80 C	DPST-NC	5 mm	2 mm			48 mm	1.89 in
