19-223 Series
Manufacturer: Everlight Electronics Co Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

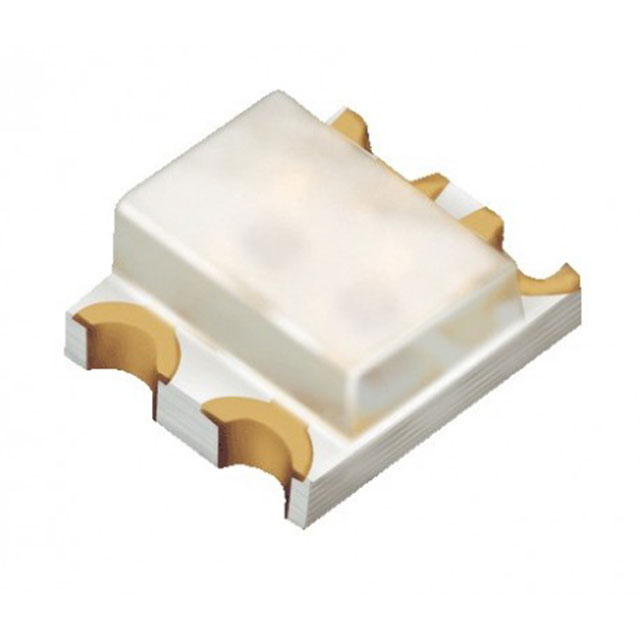

LED GREEN/RED CLEAR CHIP SMD
| Part | Lens Style | Millicandela Rating Colors | Millicandela Rating (Green) | Millicandela Rating (Red) | Wavelength - Peak Colors | Wavelength - Peak (Green) | Wavelength - Peak (Red) | Lens Transparency | Viewing Angle | Package Name | Voltage - Forward (Vf) (Typ) (Red) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Wavelength - Dominant Color | Wavelength - Dominant (Green) | Wavelength - Dominant (Red) | Size / Dimension Width | Size / Dimension Length | Lens Color | Lens Length | Lens Width | Package / Case | Current - Test (Green) | Current - Test Colors | Current - Test (Red) | Height (Max) | Mounting Type | Configuration | Color | Voltage - Forward (Vf) (Typ) (Value 2) | Voltage - Forward (Vf) (Typ) (Value 1) | Wavelength - Peak (Yellow-Green) | Wavelength - Peak (Yellow) | Current - Test | Wavelength - Dominant ({{color}}) | Wavelength - Dominant (Yellow-Green) | Wavelength - Dominant (Yellow) | Wavelength - Dominant (Primary) | Wavelength - Dominant (Secondary) | Package Diameter | Wavelength - Peak | Millicandela Rating ({{color}}) | Current - Test (Orange) | Current - Test (White) | Wavelength - Dominant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Flat Top Rectangle | Green Red | 29 mcd | 56 mcd | Green Red | 575 nm | 632 nm | Clear | 130 ° | Chip LED | 2 V | Green Red | 2 V | Green Red | 573 nm | 624 nm | 1.5 mm | 1.6 mm | Colorless | 1.2 mm | 1.1 mm | 2-SMD No Lead | 20 mA | Green Red | 20 mA | 0.6 mm | Surface Mount | Independent | Green Red | ||||||||||||||||
 Everlight Electronics Co Ltd | Flat Top Rectangle | Yellow Yellow-Green | Clear | 130 ° | 0606 4-SMD | Yellow Yellow-Green | 1.5 mm | 1.6 mm | Colorless | 1.5 mm | 1.2 mm | 0606 (1616 Metric) | Yellow Yellow-Green | 0.7 mm | Surface Mount | Independent | Yellow Yellow-Green | 2 V | 2 V | 575 nm | 591 nm | 20 mA | 569 nm 590 nm | 569 nm | 590 nm | 590 nm | 569 nm | 1616 mm | |||||||||||||||||
Everlight Electronics Co Ltd | Flat Top Rectangle | Orange White | Diffused | 140 ° | 0606 | 1.5 mm | 1.6 mm | Yellow | 1.2 mm | 1.5 mm | 0606 (1616 Metric) | Orange White | 0.7 mm | Surface Mount | Independent | Orange White | 3.2 V | 2.05 V | 1616 mm | 611 nm | 31.5 mcd 78.5 mcd | 5 mA | 5 mA | 605 nm |
