GE80252B1 Series
Manufacturer: Sunon Fans
Beta
⌘K

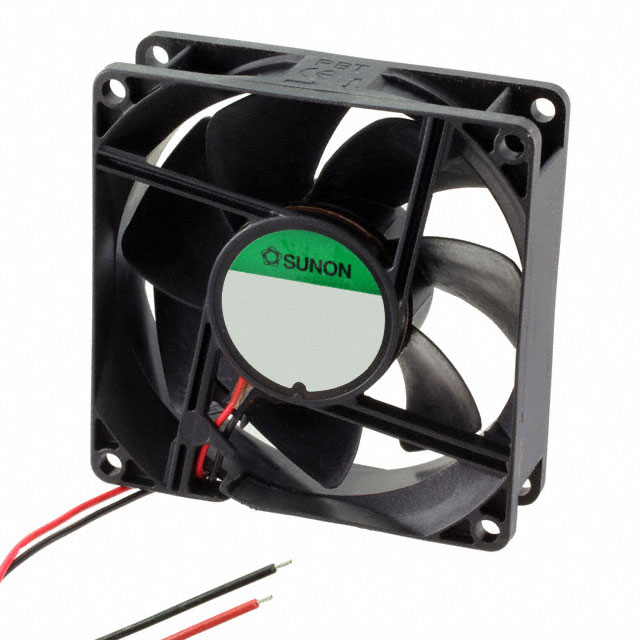

FAN AXIAL 80X25MM 24VDC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Bearing Type | Noise | Air Flow | Air Flow | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Voltage - Rated | Fan Type | Termination | Width [y] | Ingress Protection | Weight [custom] | Weight [custom] | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 70000 Hrs | Polybutylene Terephthalate (PBT) | 0.2 A | 10 VDC | 27.6 VDC | CE cUR TUV UL | Ball | 47.5 dB | 60 CFM | 1.68 m³/min | 4800 RPM | 70 °C | -10 °C | 0.41 in H2O | 102.1 Pa | 24 VDC | Tubeaxial | 2 Wire Leads | 25 mm | IP68 - Dust Tight Waterproof | 0.231 lb | 104.78 g | 4.8 W | 80 mm | 80 mm |
