SIT9005 Series

Manufacturer: SiTime

Catalog

MEMS OSC XO 8.0000MHZ LVCMOS

Part	Current - Supply (Disable) (Max) [Max]	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Spread Spectrum Bandwidth	Current - Supply (Max) [Max]	Voltage - Supply	Frequency Stability	Base Resonator	Output	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Frequency	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
SiTime SIT9005AIR11H33EP8.000000	6.5 mA	4-SMD No Lead	2.5	4-PQFN	2	1 %	6.5 mA	3.3 V	20 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	85 °C	-40 C	SSXO	2.5 mm	0.079 in	0.098 in	2 mm	Enable/Disable	8 MHz	Surface Mount
SiTime SIT9005AC-23-18DC24.000000		4-SMD No Lead	3.2	4-PQFN	2.5	0.39 %	5.5 mA	1.8 V	50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	70 °C	-20 ░C	XO (Standard)	3.2 mm	0.098 in	0.126 "	2.5 mm		24 MHz	Surface Mount
SiTime SIT9005AC-11-XXNA24.000000		4-SMD No Lead	2.5	4-PQFN	2	0.125 %	6.5 mA		20 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	70 °C	-20 ░C	XO (Standard)	2.5 mm	0.079 in	0.098 in	2 mm		24 MHz	Surface Mount	2.5 V	3.3 V

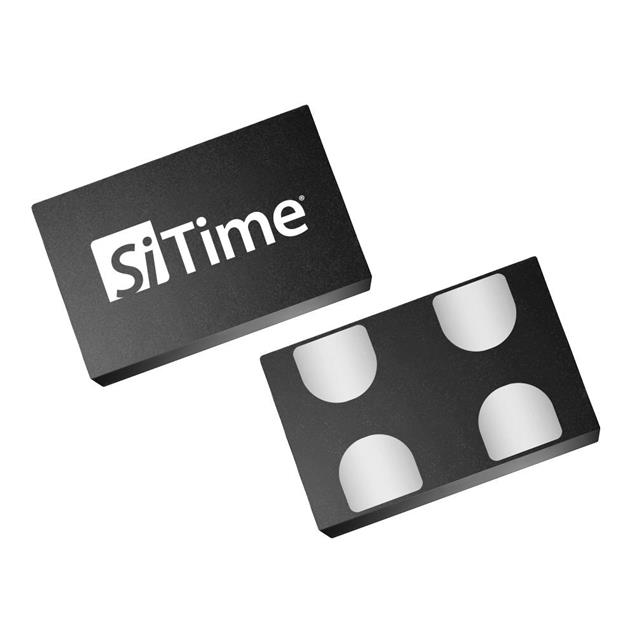

SiTime SIT9005AIU23-33EB33.000000	6.5 mA	4-SMD No Lead	3.2	4-PQFN	2.5	0.25 %	6.5 mA	3.3 V	50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	85 °C	-40 C	XO (Standard)	3.2 mm	0.098 in	0.126 "	2.5 mm	Enable/Disable	33 MHz	Surface Mount
SiTime SIT9005AC-13-33NP16.000000		4-SMD No Lead	2.5	4-PQFN	2	2.06 %	6.5 mA	3.3 V	50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	70 °C	-20 ░C	XO (Standard)	2.5 mm	0.079 in	0.098 in	2 mm		16 MHz	Surface Mount
SiTime SIT9005AC-13-XXNA27.000000		4-SMD No Lead	2.5	4-PQFN	2	0.125 %	6.5 mA		50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	70 °C	-20 ░C	XO (Standard)	2.5 mm	0.079 in	0.098 in	2 mm		27 MHz	Surface Mount	2.5 V	3.3 V
SiTime SIT9005AI-12H33SD40.000000	4.3 µA	4-SMD No Lead	2.5	4-PQFN	2	0.5 %	6.5 mA	3.3 V	25 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	85 °C	-40 C	SSXO	2.5 mm	0.079 in	0.098 in	2 mm	Standby (Power Down)	40 MHz	Surface Mount
SiTime SIT9005AC-13-33DH24.000000		4-SMD No Lead	2.5	4-PQFN	2	1.03 %	6.5 mA	3.3 V	50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	70 °C	-20 ░C	XO (Standard)	2.5 mm	0.079 in	0.098 in	2 mm		24 MHz	Surface Mount
SiTime SIT9005AI-13H33DH66.000000		4-SMD No Lead	2.5	4-PQFN	2	1.03 %	6.5 mA	3.3 V	50 ppm	MEMS	LVCMOS	0.031 in	0.8 mm	85 °C	-40 C	XO (Standard)	2.5 mm	0.079 in	0.098 in	2 mm		66 MHz	Surface Mount
