505066 Series

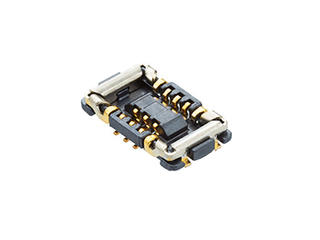

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB RP Series, 0.60mm Mated Height, 2.00mm Mated Width, 6 Circuits, Armor Nail

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB RP Series, 0.60mm Mated Height, 2.00mm Mated Width, 6 Circuits, Armor Nail

Part	Connector Type	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Number of Rows [custom]	Features	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness

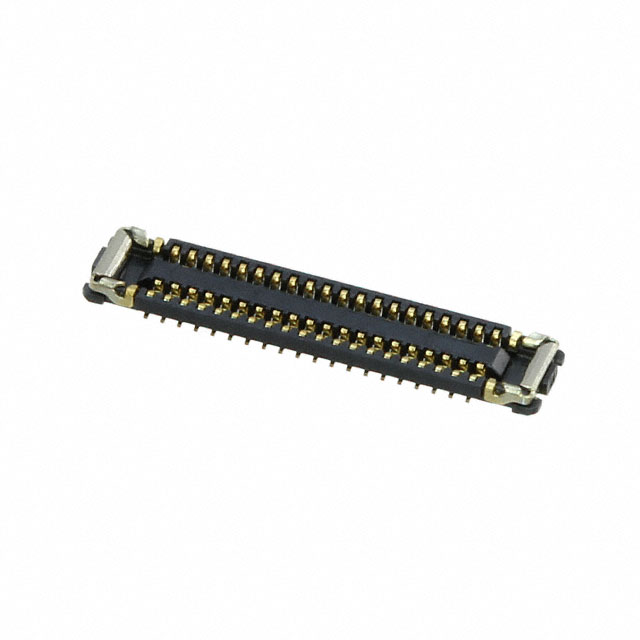

Molex 5050664010	Receptacle Center Strip Contacts	Gold	0.6 mm	0.57 mm	0.022 in	40	Surface Mount	2	Solder Retention	0.014 in	0.35 mm
Molex 5050661622	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	16	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin
Molex 5050661422	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	14	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin

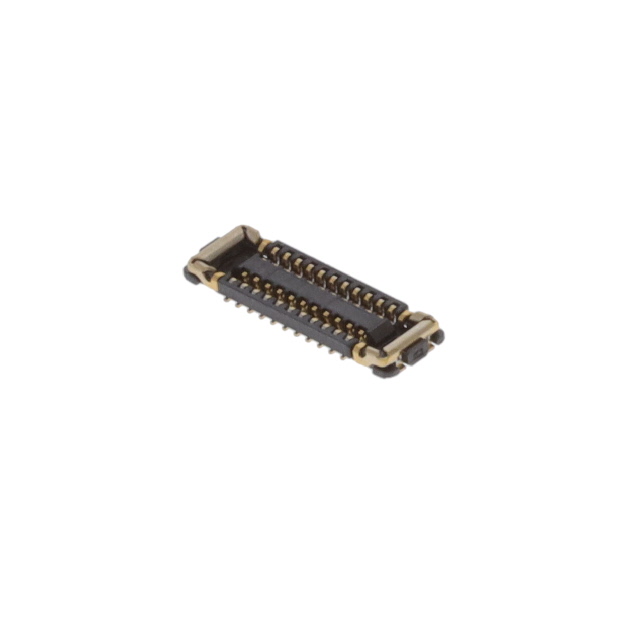

Molex 5050662222	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	22	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin
Molex 5050660822	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	8	Surface Mount	2	Solder Retention	0.014 in	0.35 mm	0.1 Ám	3.94 µin
Molex 5050664020	Receptacle Center Strip Contacts	Gold	0.6 mm	0.57 mm	0.022 in	40	Surface Mount	2	Solder Retention	0.014 in	0.35 mm

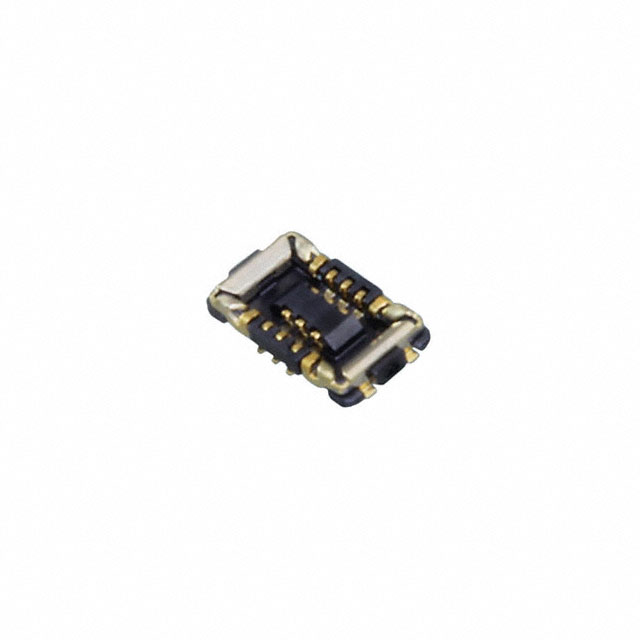

Molex 5050660610	Receptacle Center Strip Contacts	Gold	0.6 mm	0.57 mm	0.022 in	6	Surface Mount	2	Solder Retention	0.014 in	0.35 mm
Molex 5050661022	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	10	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin
Molex 5050661222	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	12	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin

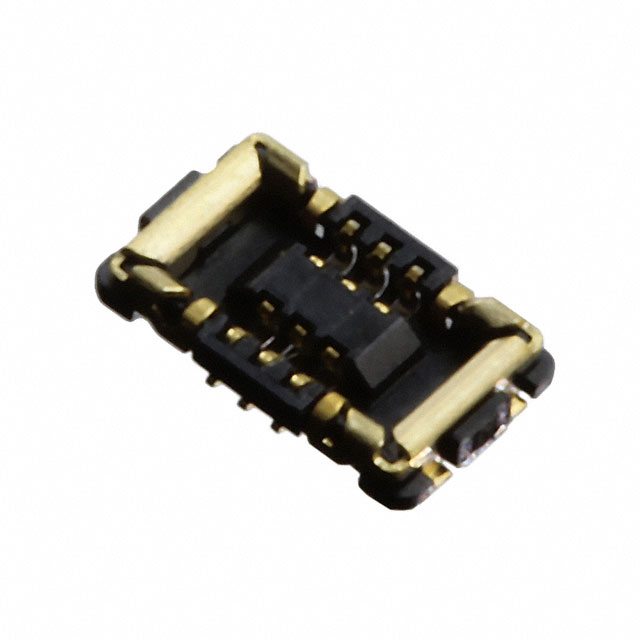

Molex 5050660622	Receptacle Center Strip Contacts	Gold	0.6 mm	0.59 mm	0.023 in	6	Surface Mount	2	Pick and Place Solder Retention	0.014 in	0.35 mm	0.1 Ám	4 Áin
