746-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Termination	Card Type	Contact Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Mounting Type	Contact Finish	Color	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Rows

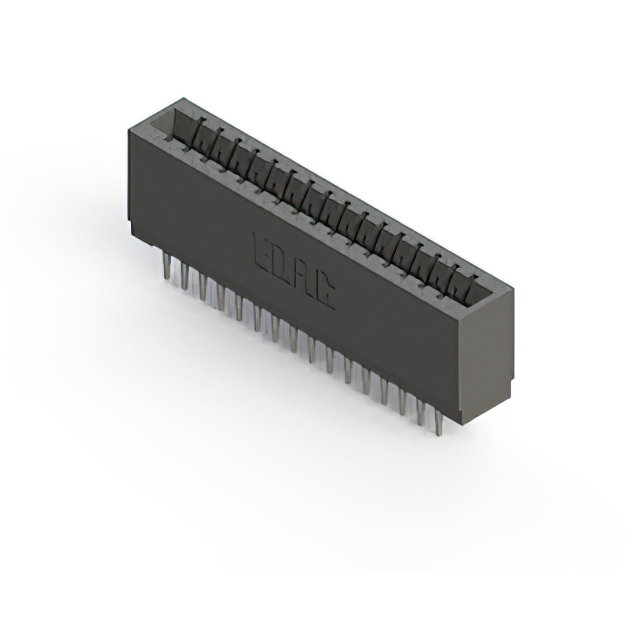

EDAC Inc. 746-032-553-601	Polyester Thermoplastic	2	16	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C

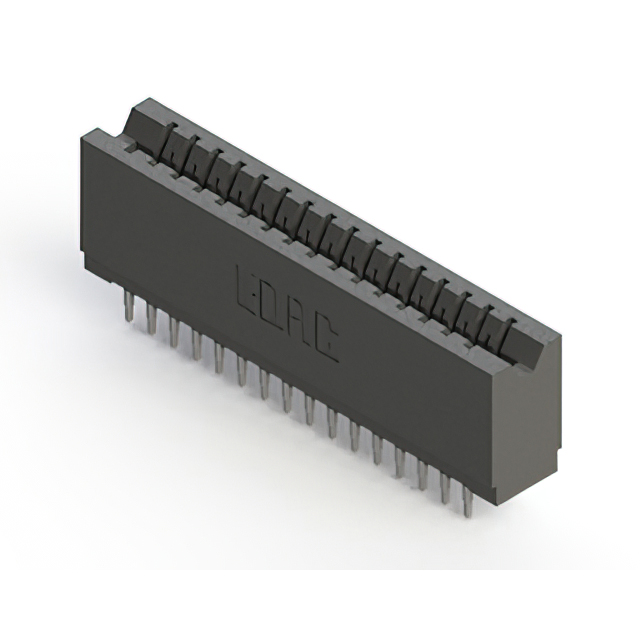

EDAC Inc. 746-032-520-606	Polyester Thermoplastic	2	16	Press-Fit	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C

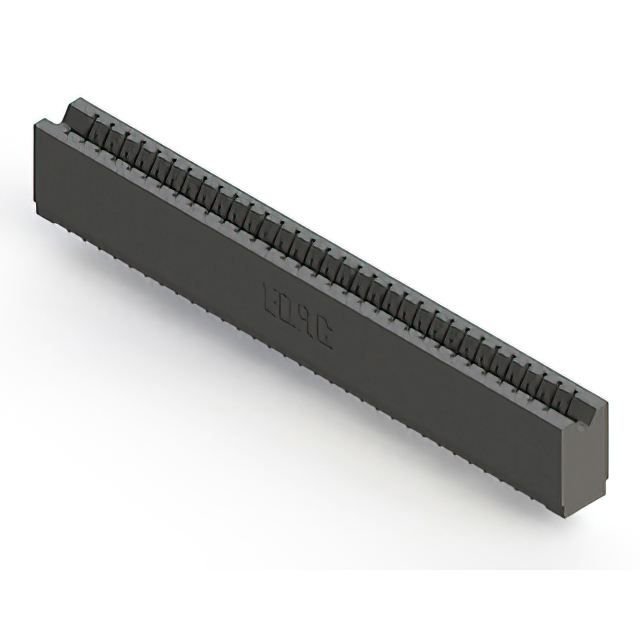

EDAC Inc. 746-032-520-506	Polyester Thermoplastic		32	Press-Fit	Non Specified - Single Edge	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C	1	1
EDAC Inc. 746-032-527-201	Polyester Thermoplastic	2	16	Press-Fit	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C

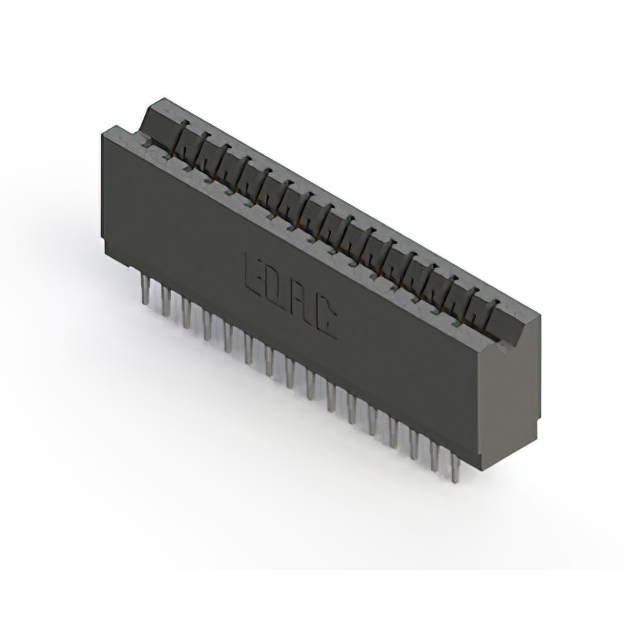

EDAC Inc. 746-032-527-206	Polyester Thermoplastic	2	16	Press-Fit	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C

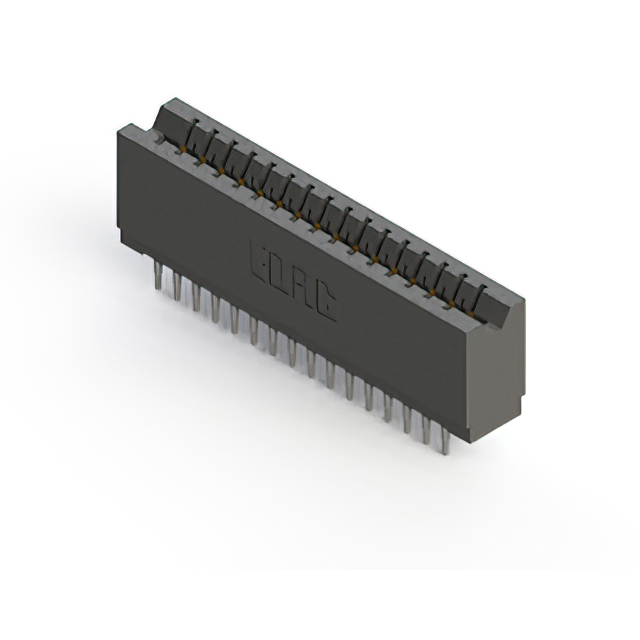

EDAC Inc. 746-032-545-206	Polyester Thermoplastic	2	16	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C
EDAC Inc. 746-032-520-501	Polyester Thermoplastic		32	Press-Fit	Non Specified - Single Edge	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C	1	1
EDAC Inc. 746-032-520-106	Polyester Thermoplastic		32	Press-Fit	Non Specified - Single Edge	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C	1	1

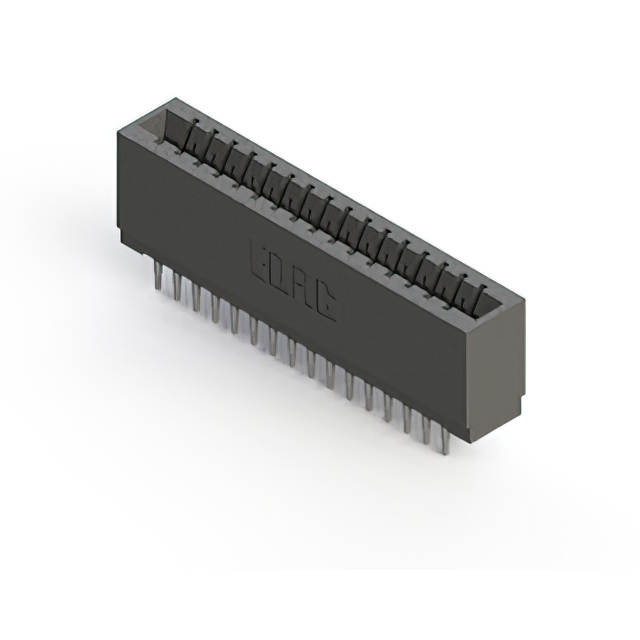

EDAC Inc. 746-032-540-201	Polyester Thermoplastic	2	16	Press-Fit Wire Wrap	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C

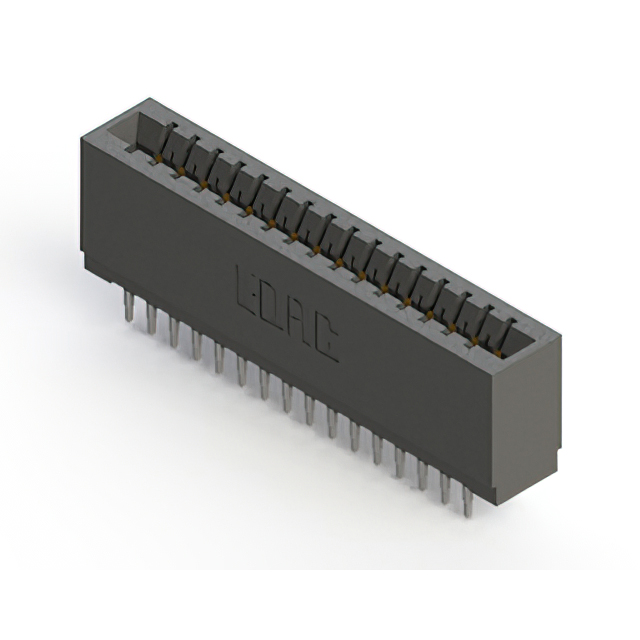

EDAC Inc. 746-032-525-601	Polyester Thermoplastic	2	16	Press-Fit	Non Specified - Dual Edge	Cantilever	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	Gold	Black	Copper Alloy	30 Áin	0.76 Ám	3.18 mm	0.125 in	Female	-40 C	105 ░C
