MF25101V1 Series
Manufacturer: Sunon Fans
Beta
⌘K

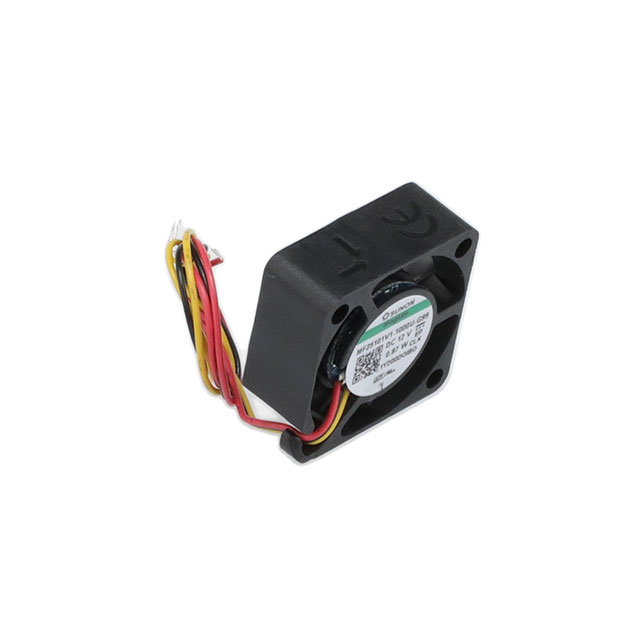

FAN AXIAL 25X10MM 12VDC WIRE
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Features | Width [y] | Noise | RPM | Voltage - Rated | Static Pressure | Static Pressure | Fan Type | Bearing Type | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight | Approval Agency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 50 mA | 70000 Hrs | Polybutylene Terephthalate (PBT) | 13.8 VDC | 6 VDC | Auto Restart Speed Sensor (Tach) | 10 mm | 26 dB | 14000 RPM | 12 VDC | 0.27 in H2O | 67.3 Pa | Tubeaxial | Vapo-Bearing™ | 25 mm | 25 mm | 6.8 g | 0.015 lb | cURus TUV | 600 mW | 70 °C | -10 °C | 3 Wire Leads | 0.106 m³/min | 3.8 CFM |
