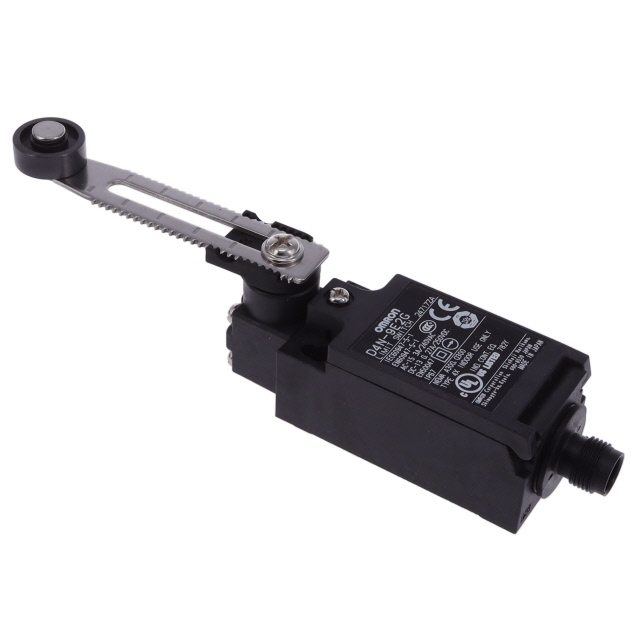

D4N-9E2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Circuit | Ingress Protection | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Switch Function | Features | Release Force | Actuator Type | Pretravel | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Operating Force | Mounting Type | Electrical Life | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | DPST-NO/NC (MBB) | IP67 - Dust Tight Waterproof | 250 V | Connector | 3 A 270 mA | Off-Mom On-Mom | Metal Lever Resin Roller | 41 gf | Side Rotary Adjustable Roller | 28 ° | 40 ° | 70 °C | -30 ░C | 15000000 Cycles | 459 gf | Chassis Mount | 300000 Cycles | 240 V |
