GRPB052 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 10POS 1.27MM
| Part | Contact Finish Thickness - Post | Features | Contact Shape | Fastening Type | Contact Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Contact Finish - Post | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Termination | Number of Rows [custom] | Style | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Mounting Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

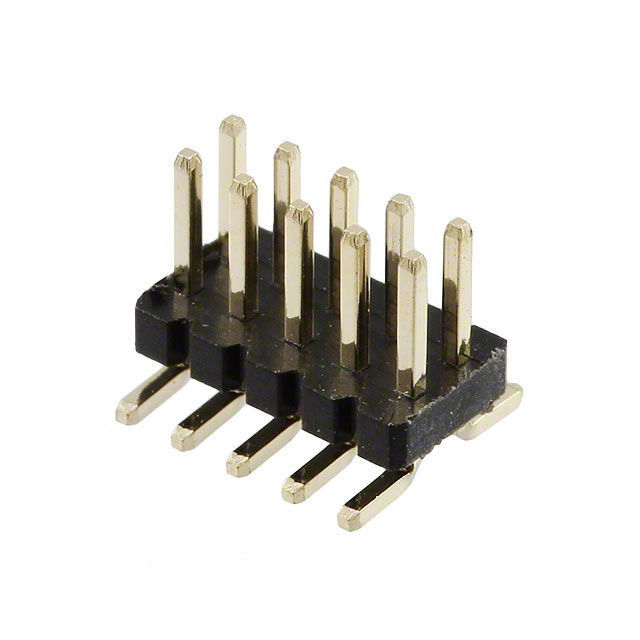

 Sullins Connector Solutions | Flash | Board Guide | Square | Push-Pull | Brass | All | 1.27 mm | 0.05 in | Male Pin | 10 | Flash | 1 mm | 0.039 in | UL94 V-0 | Gold | Gold | 3 mm | 0.118 in | Solder | 2 | Board to Board Cable | -40 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Header | 0.05 in | 1.27 mm | Unshrouded | Surface Mount | |||||||

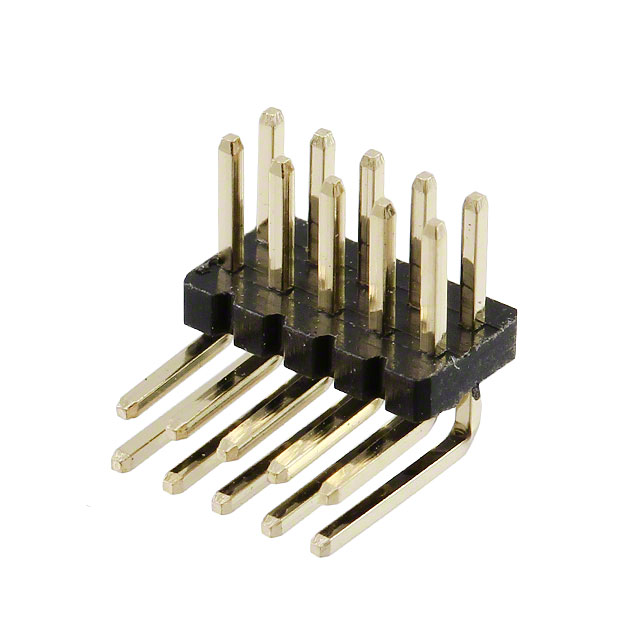

 Sullins Connector Solutions | Flash | Square | Push-Pull | Brass | All | 1.27 mm | 0.05 in | Male Pin | 10 | Flash | UL94 V-0 | Gold | Gold | 3 mm | 0.118 in | Solder | 2 | Board to Board Cable | -40 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Header | 0.05 in | 1.27 mm | Unshrouded | Right Angle Through Hole | 2.5 mm | 0.098 in | 0.134 in | 3.4 mm | ||||||

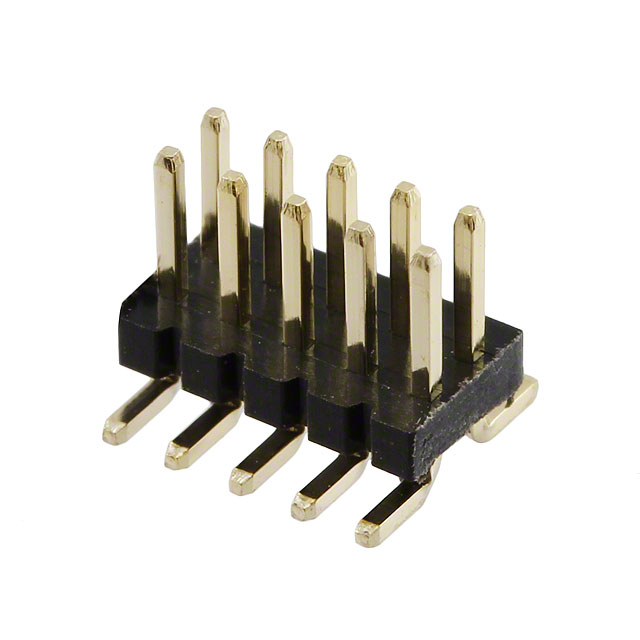

 Sullins Connector Solutions | Flash | Pick and Place | Square | Push-Pull | Brass | All | 1.27 mm | 0.05 in | Male Pin | 10 | Flash | 1 mm | 0.039 in | UL94 V-0 | Gold | Gold | 3 mm | 0.118 in | Solder | 2 | Board to Board Cable | -40 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Header | 0.05 in | 1.27 mm | Unshrouded | Surface Mount | |||||||

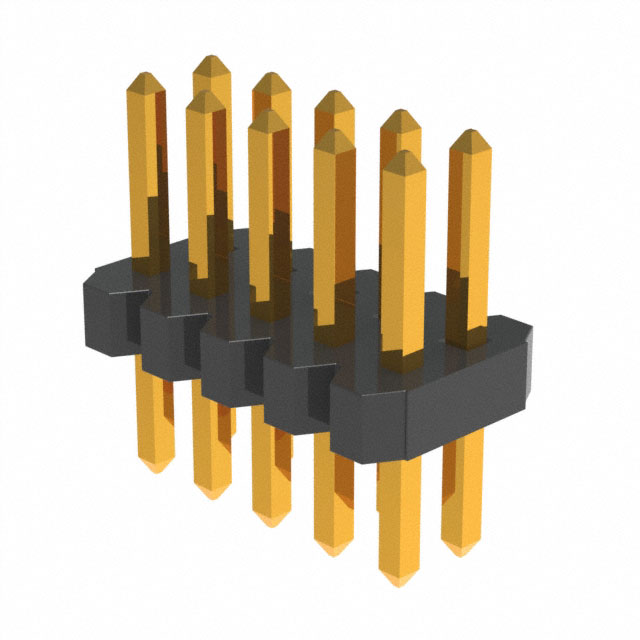

 Sullins Connector Solutions | Flash | Square | Push-Pull | Brass | All | 1.27 mm | 0.05 in | Male Pin | 10 | Flash | 1 mm | 0.039 in | UL94 V-0 | Gold | Gold | 3 mm | 0.118 in | Solder | 2 | Board to Board Cable | -40 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Header | 0.05 in | 1.27 mm | Unshrouded | Through Hole | 2.3 mm | 0.248 in | 6.3 mm | 0.091 " | ||||

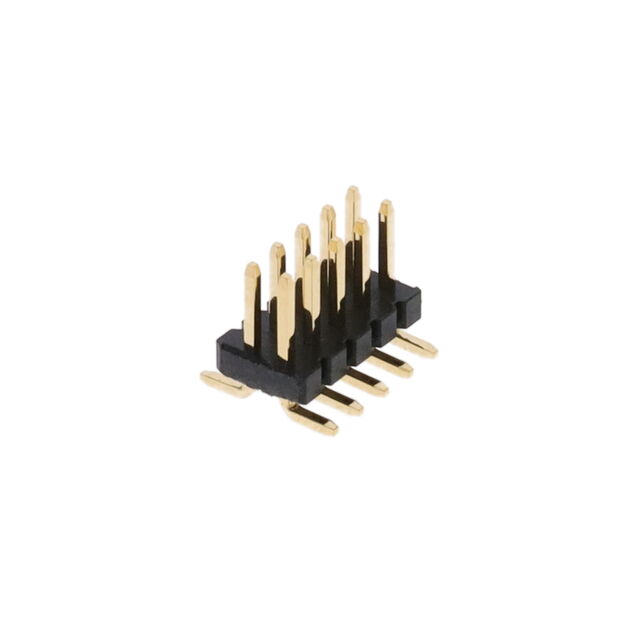

 Sullins Connector Solutions | Flash | Square | Push-Pull | Brass | All | 1.27 mm | 0.05 in | Male Pin | 10 | Flash | 1 mm | 0.039 in | UL94 V-0 | Gold | Gold | 3 mm | 0.118 in | Solder | 2 | Board to Board Cable | -40 C | 105 ░C | Nylon 9T Polyamide (PA9T) | Header | 0.05 in | 1.27 mm | Unshrouded | Surface Mount |
