EX-26 Series

Catalog

SENSOR REFLECTIVE 14MM PNP

Part	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Output Configuration	Light Source	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]

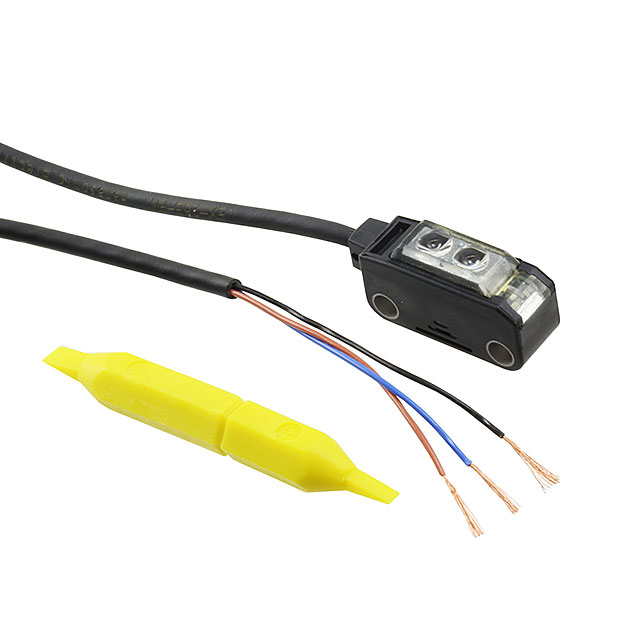

Panasonic Industrial Automation Sales EX-26B-PN	Cable	55 °C	-25 °C	IP67	PNP - Open Collector/Dark-ON	Red LED	78.74 "	2 m	0.236 in	14 mm	0.551 in	6 mm	Convergent Reflective	500 µs	12 VDC	24 V

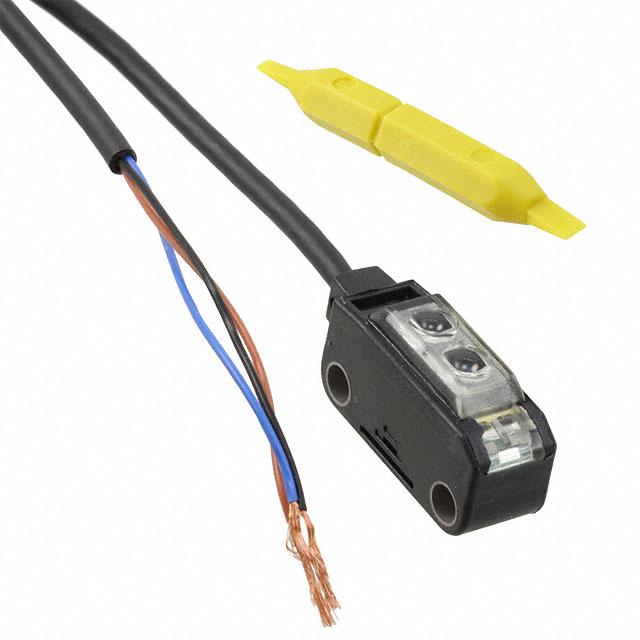

Panasonic Industrial Automation Sales EX-26A-PN	Cable	55 °C	-25 °C	IP67	PNP - Open Collector/Light-ON	Red LED	78.74 "	2 m	0.236 in	14 mm	0.551 in	6 mm	Convergent Reflective	500 µs	12 VDC	24 V

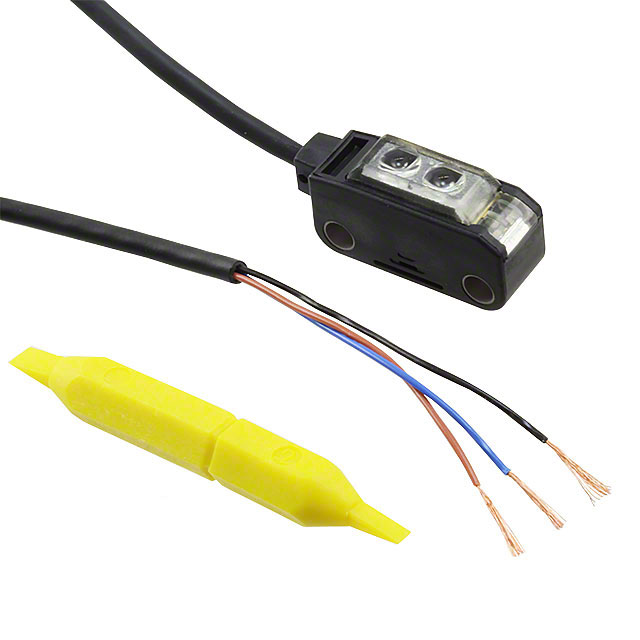

Panasonic Industrial Automation Sales EX-26B	Cable	55 °C	-25 °C	IP67	NPN - Open Collector/Dark-ON	Red LED	78.74 "	2 m	0.236 in	14 mm	0.551 in	6 mm	Convergent Reflective	500 µs	12 VDC	24 V
