MSS2 Series

Catalog

SWITCH SLIDE DPDT 300MA 125V

Part	Operating Force	Mechanical Life	Switch Travel	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Contact Timing	Current Rating (Amps)	Contact Finish	Features	Switch Function	Mounting Type	Voltage Rating - AC	Circuit	Contact Material	Actuator Length [x]	Voltage Rating - DC
TE Connectivity AMP Connectors MSS2220	600 gf	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	15000 Cycles	85 °C	-20 ░C	Standard	PC Pin	Shorting (MBB)	300 mA	Silver	Epoxy Sealed Terminals	On-On	Through Hole	125 V	DPDT	Copper Alloy	5 mm
TE Connectivity AMP Connectors MSS2200	600 gf	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	15000 Cycles	85 °C	-20 ░C	Standard	PC Pin	Shorting (MBB)	300 mA	Silver	Epoxy Sealed Terminals	On-On	Through Hole	125 V	DPDT	Copper Alloy	2.3 mm

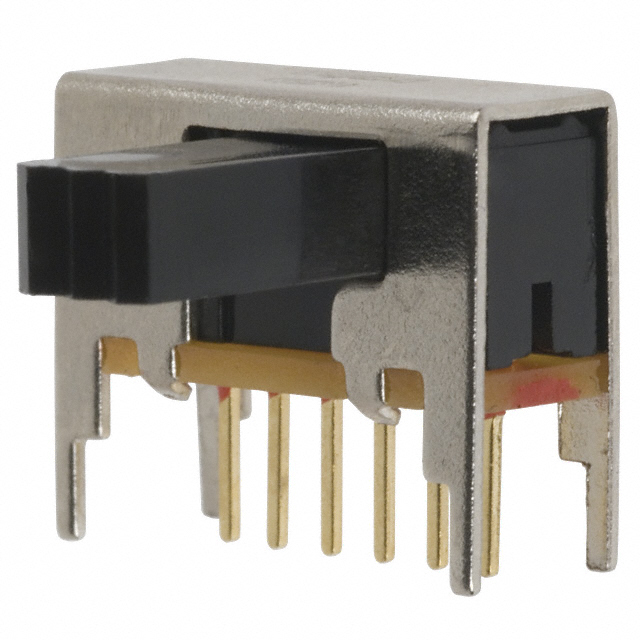

TE Connectivity AMP Connectors MSS2250RG	600 gf	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	15000 Cycles	85 °C	-20 ░C	Standard	PC Pin	Shorting (MBB)	0.4 VA	Gold	Epoxy Sealed Terminals	On-On	Right Angle Through Hole	20 V	DPDT	Copper Alloy	9.5 mm	20 V

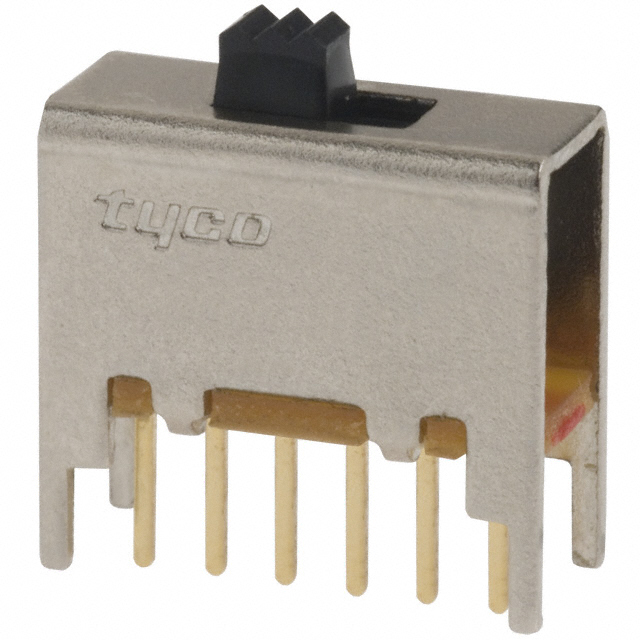

TE Connectivity AMP Connectors MSS2200G	600 gf	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	15000 Cycles	85 °C	-20 ░C	Standard	PC Pin	Shorting (MBB)	0.4 VA	Gold	Epoxy Sealed Terminals	On-On	Through Hole	20 V	DPDT	Copper Alloy	2.3 mm	20 V
TE Connectivity AMP Connectors MSS2225G	600 gf	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	15000 Cycles	85 °C	-20 ░C	Standard	PC Pin	Shorting (MBB)	0.4 VA	Gold	Epoxy Sealed Terminals	On-On	Through Hole	20 V	DPDT	Copper Alloy	5.41 mm	20 V
