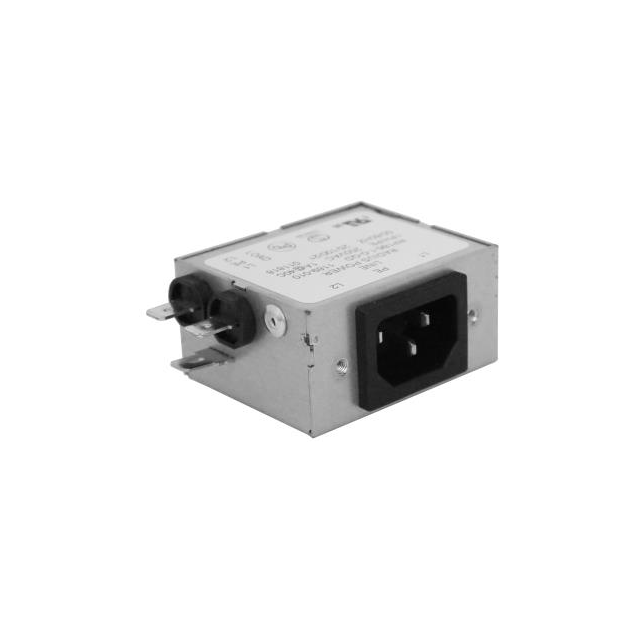

RP186 Series

Catalog

LINE FILTER 250VAC 1A CHASSIS

...

Part	Applications	Approval Agency	Filter Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Current
Astrodyne TDI RP186-1-.47-W	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Wire Leads	250 V	60 Hz	50 Hz	1 A
Astrodyne TDI RP186-12-1-W	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Wire Leads	250 V	60 Hz	50 Hz	12 A
Astrodyne TDI RP186-3-4.7-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	3 A
Astrodyne TDI RP186-16-22-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	16 A
Astrodyne TDI RP186-3-0-W	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Wire Leads	250 V	60 Hz	50 Hz	3 A
Astrodyne TDI RP186-1-47-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	1 A
Astrodyne TDI RP186-1-0-W	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Wire Leads	250 V	60 Hz	50 Hz	1 A
Astrodyne TDI RP186-16-47-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	16 A
Astrodyne TDI RP186-1-4.7-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	1 A
Astrodyne TDI RP186-12-2.2-QD	General Purpose	CE CSA cURus ENEC	Single Phase	Single Stage	100 °C	-25 °C	Chassis Mount	IEC 320-C14 Quick Connect	250 V	60 Hz	50 Hz	12 A
