PDTA124 Series

50 V, 100 mA PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ

Catalog

50 V, 100 mA PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ

Part	Transistor Type	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistor - Base (R1)	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Resistor - Emitter Base (R2)	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Mounting Type	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Qualification	DC Current Gain (hFE) (Min) @ Ic, Vce	Grade	Resistors Included
Nexperia USA Inc. PDTA124XT,215	PNP - Pre-Biased	SC-59 SOT-23-3 TO-236-3	150 mV	50 V	22 kOhms	250 mW	80	47 kOhms	TO-236AB	100 mA	Surface Mount	100 nA
Nexperia USA Inc. PDTA124XQCZ	PNP - Pre-Biased	3-XDFN Exposed Pad	100 mV	50 V	22 kOhms	360 mW	80	47 kOhms	DFN1412D-3	100 mA	Surface Mount Wettable Flank	100 nA	180 MHz

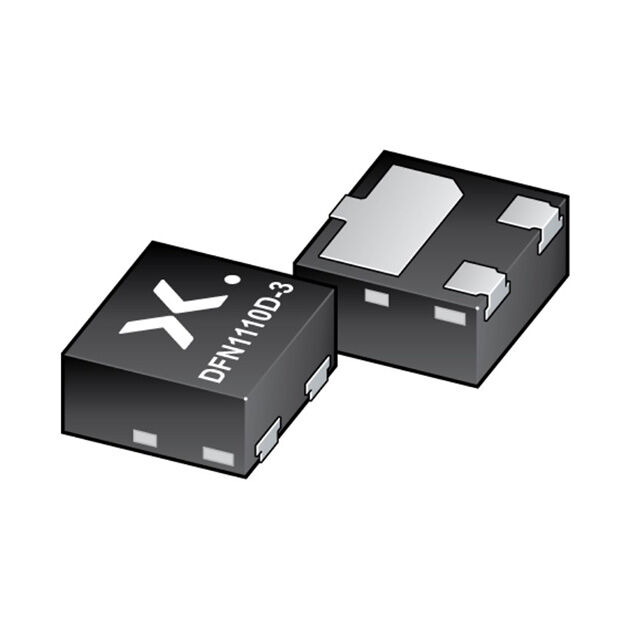

Nexperia USA Inc. PDTA124EQB-QZ	PNP - Pre-Biased	3-XDFN Exposed Pad	100 mV	50 V	22 kOhms	340 mW		22 kOhms	DFN1110D-3	100 mA	Surface Mount Wettable Flank	100 nA	180 MHz	AEC-Q101	60	Automotive
Nexperia USA Inc. PDTA124TM,315	PNP - Pre-Biased	SC-101 SOT-883	150 mV	50 V	22 kOhms	250 mW	100		SOT-883	100 mA	Surface Mount	1 µA
Nexperia USA Inc. PDTA124XU,115	PNP - Pre-Biased	SC-70 SOT-323	150 mV	50 V	22 kOhms	200 mW	80	47 kOhms	SOT-323	100 mA	Surface Mount	1 µA
Nexperia USA Inc. PDTA124XT/APGR	PNP - Pre-Biased	SC-59 SOT-23-3 TO-236-3	150 mV	50 V	22 kOhms	150 mW	80	47 kOhms	TO-236AB	100 mA	Surface Mount	1 µA
Nexperia USA Inc. PDTA124XQB-QZ	PNP - Pre-Biased	3-XDFN Exposed Pad	100 mV	50 V	22 kOhms	340 mW	80	47 kOhms	DFN1110D-3	100 mA	Surface Mount Wettable Flank	100 nA	180 MHz	AEC-Q101		Automotive	R1 R2
Nexperia USA Inc. PDTA124TT,215	PNP - Pre-Biased	SC-59 SOT-23-3 TO-236-3	150 mV	50 V	22 kOhms	250 mW	100		TO-236AB	100 mA	Surface Mount	1 µA
Nexperia USA Inc. PDTA124EM,315	PNP - Pre-Biased	SC-101 SOT-883	150 mV	50 V	22 kOhms	250 mW		22 kOhms	SOT-883	100 mA	Surface Mount	1 µA		AEC-Q100	60	Automotive
Nexperia USA Inc. PDTA124XM,315	PNP - Pre-Biased	SC-101 SOT-883	150 mV	50 V	22 kOhms	250 mW	80	47 kOhms	SOT-883	100 mA	Surface Mount	1 µA

Catalog

50 V, 100 mA PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ

Description

100 mA PNP Resistor-Equipped Transistor (RET) family in an ultra small DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
