LCC4 Series

Catalog

CONN TERM RECT TONG 4/0 AWG #1/2

Part	Contact Material	Contact Finish	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID	Diameter - Ring ID	Color	Width - Outer Edges	Width - Outer Edges [x]	Stud/Tab Size	Tab Thickness	Tab Thickness	Insulation	Terminal Type	Wire Gauge	Terminal Style	Mounting Type	Termination	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel ID	Diameter - Barrel ID	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges	Diameter - Ring ID	Tab Thickness [custom]	Tab Thickness [custom]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges [x]	Length - Overall	Length - Overall

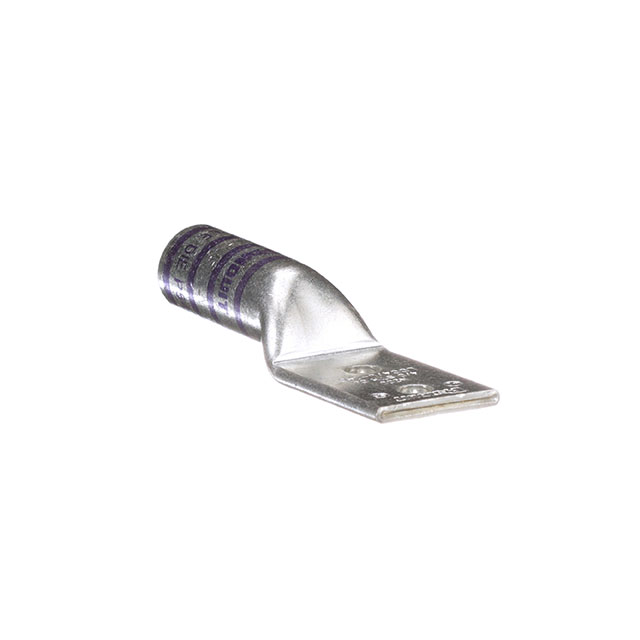

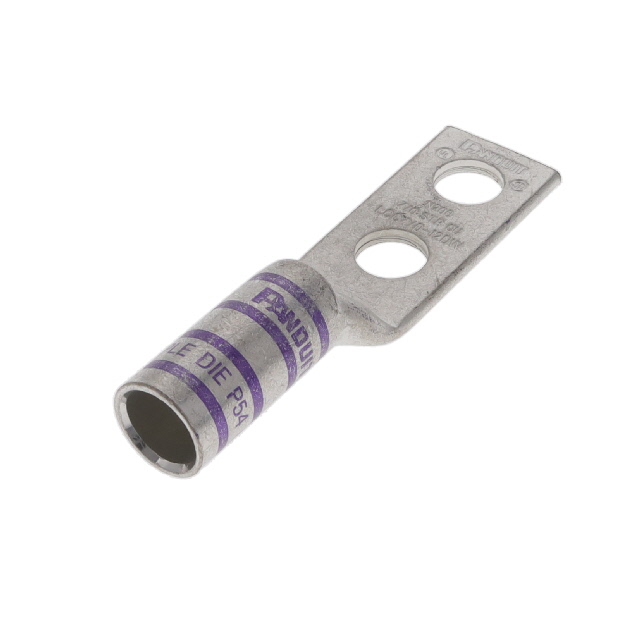

Panduit Corp LCC4/0-12DW-X	Copper	Electro-Tin	0.57 "	14.48 mm	18.03 mm	0.71 in	13.46 mm	0.53 in	Purple	26.92 mm	1.06 in	0.5 Stud	0.14 in	3.56 mm	Non-Insulated	Rectangular Tongue	4 aught AWG	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp	4.04 in	102.62 mm

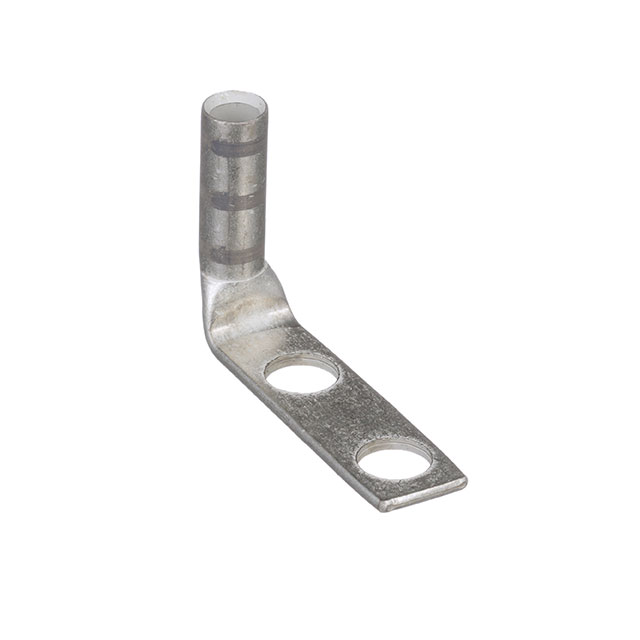

Panduit Corp LCC4-38DWF-L	Copper	Electro-Tin			9.65 mm	0.38 in			Gray	15.75 mm		0.375 Stud	0.08 "	2.03 mm	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp			10.41 mm	0.41 "	7.11 mm	0.28 in	2 AWG	4 AWG	0.62 in
Panduit Corp LCC4-38DWH-L	Copper	Electro-Tin			9.65 mm	0.38 in			Gray	15.75 mm		0.375 Stud	0.08 "	2.03 mm	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp			10.41 mm	0.41 "	7.11 mm	0.28 in	2 AWG	4 AWG	0.62 in
Panduit Corp LCC4-14BH-L	Copper	Electro-Tin			9.65 mm	0.38 in		6.86 mm	Gray			0.25 Stud			Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp					7.11 mm	0.28 in	2 AWG	4 AWG		0.27 in	0.09 in	2.29 mm	0.55 in	13.97 mm

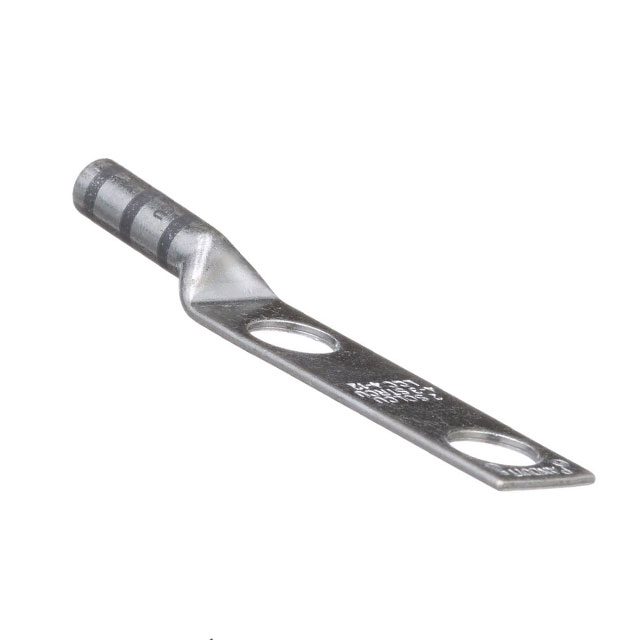

Panduit Corp LCC4-12-L	Copper	Electro-Tin			9.65 mm	0.38 in	13.46 mm	0.53 in	Gray		0.75 in	0.5 Stud	0.07 in	1.78 mm	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp	4.09 in	103.89 mm			7.11 mm	0.28 in	2 AWG	4 AWG							19.05 mm
Panduit Corp LCC4-10BWF-L	Copper	Electro-Tin			9.65 mm	0.38 in			Gray			10 Stud			Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp			5.08 mm	0.2 in	7.11 mm	0.28 in	2 AWG	4 AWG			0.09 in	2.29 mm	0.55 in	13.97 mm

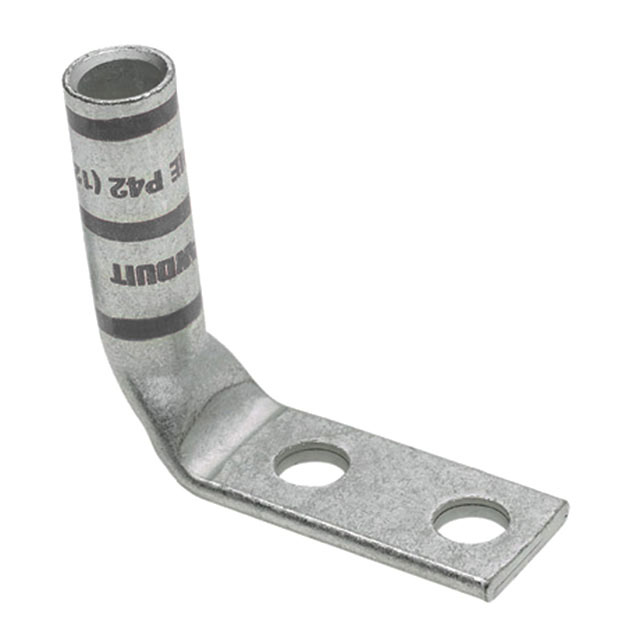

Panduit Corp LCC4-14AWF-L	Copper	Electro-Tin			9.65 mm	0.38 in		6.86 mm	Gray			0.25 Stud			Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line) Right Angle	Barrel Crimp					7.11 mm	0.28 in	2 AWG	4 AWG		0.27 in	0.09 in	2.29 mm	0.55 in	13.97 mm

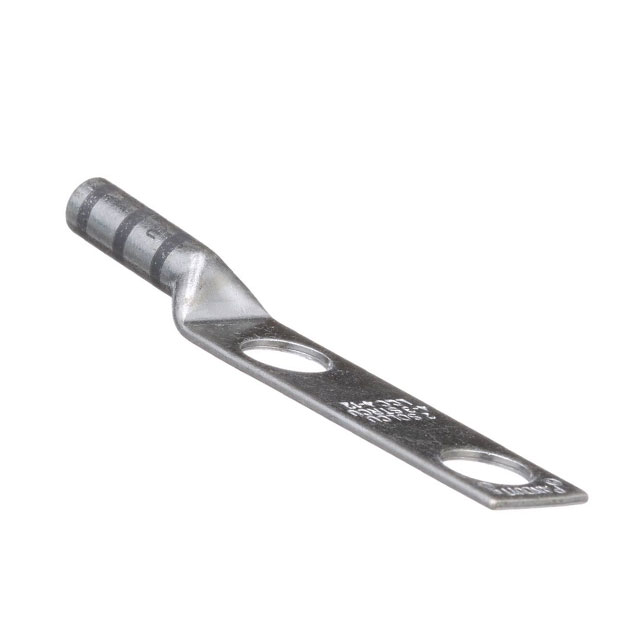

Panduit Corp LCC4-38D-L	Copper	Electro-Tin			9.65 mm	0.38 in			Gray	15.75 mm		0.375 Stud	0.08 "	2.03 mm	Non-Insulated	Rectangular Tongue		Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp			10.41 mm	0.41 "	7.11 mm	0.28 in	2 AWG	4 AWG	0.62 in							3.17 in	80.52 mm
Panduit Corp LCC4/0-14B-X	Copper	Electro-Tin	0.57 "	14.48 mm	18.03 mm	0.71 in		6.86 mm	Purple	26.92 mm	1.06 in	0.25 Stud	0.14 in	3.56 mm	Non-Insulated	Rectangular Tongue	4 aught AWG	Two Stud Holes	Free Hanging (In-Line)	Barrel Crimp	3.66 in	92.96 mm								0.27 in
Panduit Corp LCC4-14ADW-L	Copper	Electro-Tin			9.65 mm	0.38 in		6.86 mm	Gray			0.25 Stud			Non-Insulated	Lug Grounding		Round Slotted	Free Hanging (In-Line)	Barrel Crimp					7.11 mm	0.28 in	2 AWG	4 AWG		0.27 in	0.09 in	2.29 mm	0.55 in	13.97 mm		2.87 in	72.9 mm
