1102261 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HOOD SIDE ENTRY SZ4 PG16

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size	Housing Finish	Housing Material	Connector Type	Thread Size	Style	Ingress Protection	Lock Location	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1-1102261-1	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4	Powder Coated	Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	Gray
TE Connectivity AMP Connectors 2-1102261-6	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4	Aluminum Oxide	Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Black	80 °C	-40 C
TE Connectivity AMP Connectors 1-1102261-7	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4	Powder Coated	Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Gray	80 °C	-40 C

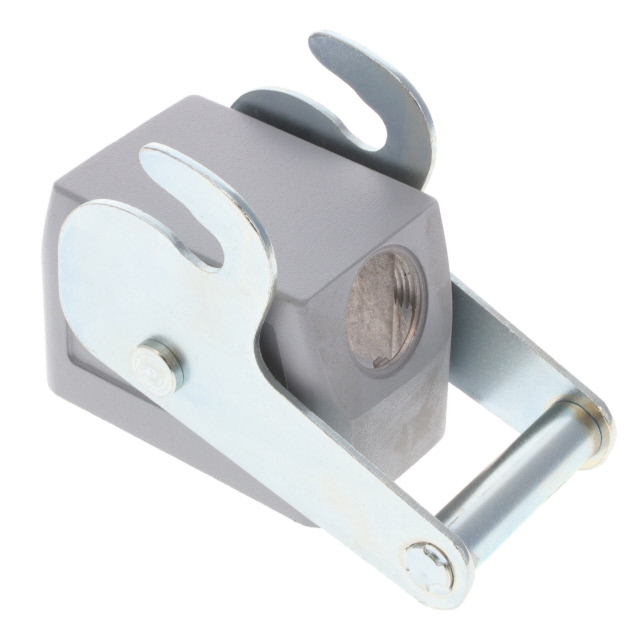

TE Connectivity AMP Connectors 1-1102261-3	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4	Powder Coated	Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Gray	80 °C	-40 C
TE Connectivity AMP Connectors 2-1102261-3	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4	Aluminum Oxide	Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	Black	80 °C	-40 C

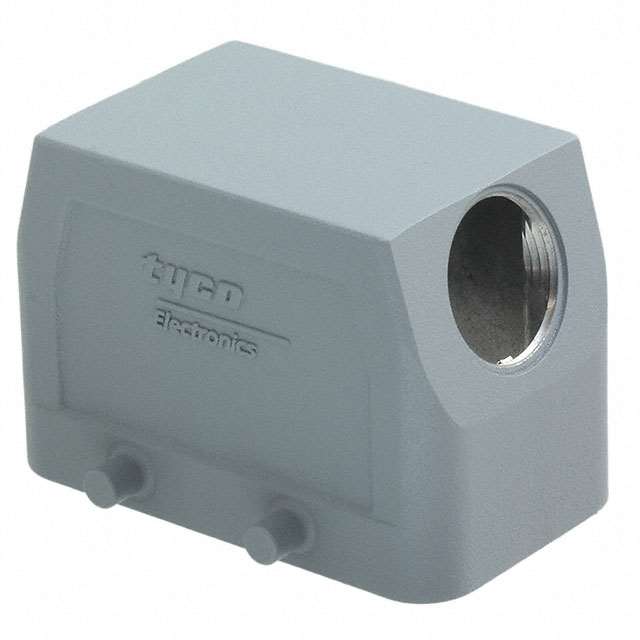

TE Connectivity AMP Connectors 1-1102261-6	1.693 "	1.969 "	43 mm	50 mm	73 mm	2.874 "	4		Aluminum Alloy Die Cast	Hood	PG16	Side Entry	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Gray	80 °C	-40 C
