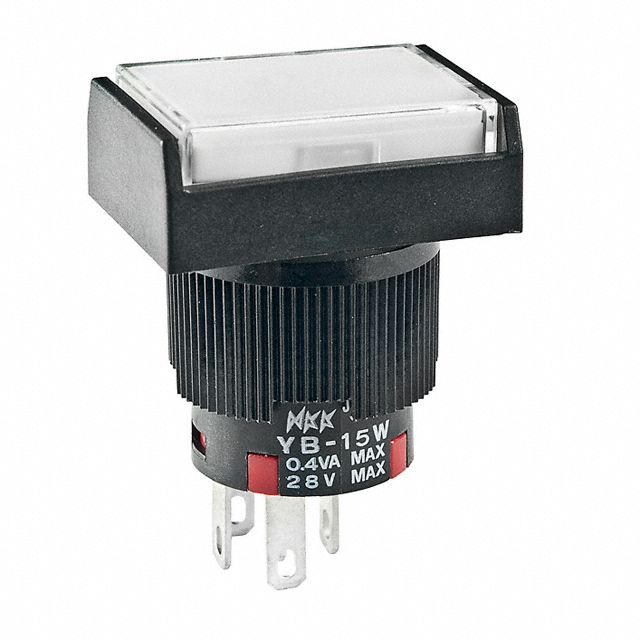

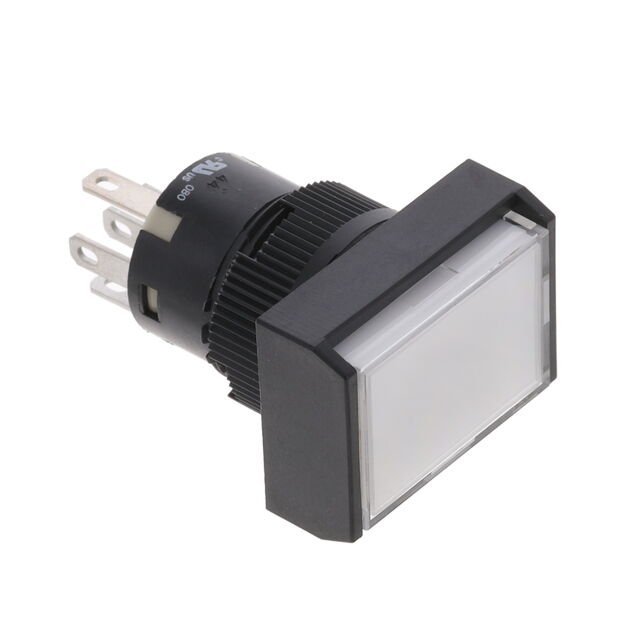

YB15WR Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH BUTTON ON (ON) SPDT RECTANGULAR BUTTON 0.1A 28VAC 28VDC 0.4VA MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG
| Part | Mechanical Life | Electrical Life | Current Rating (Amps) | Type | Features | Illumination Type, Color | Actuator Type | Illumination Voltage (Nominal) | Color - Actuator/Cap | Voltage Rating - AC | Actuator Marking | Termination Style | Circuit | Switch Function | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Panel Cutout Dimensions [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | 0.4 VA | Illuminated Standard | Tactile Feedback | LED White | Button Rectangular | 3.3 VDC | Clear | 28 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 0.4 VA | Illuminated Standard | Tactile Feedback | Green LED | Button Rectangular | 5 VDC | Clear | 28 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | Illuminated Standard | Tactile Feedback | LED Red | Button Rectangular | 24 V | Clear | 125 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
NKK Switches | 1000000 Cycles | 100000 Cycles | 0.4 VA | Illuminated Standard | Tactile Feedback | Green LED | Button Rectangular | 24 V | Clear | 28 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | Illuminated Standard | Tactile Feedback | Blue LED | Button Rectangular | 3.6 VDC | Clear | 125 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | Illuminated Standard | Tactile Feedback | Green/Red LED | Button Rectangular | 2 VDC | Clear | 125 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | Standard | Tactile Feedback | Plunger for Cap | 125 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 30 V | 70 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front | |||
NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | Illuminated Standard | Tactile Feedback | Amber LED | Button Rectangular | 2 VDC | Clear | 125 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 30 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
NKK Switches | 1000000 Cycles | 100000 Cycles | 0.4 VA | Illuminated Standard | Tactile Feedback | Amber LED | Button Rectangular | 2 VDC | Clear | 28 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
 NKK Switches | 1000000 Cycles | 100000 Cycles | 0.4 VA | Illuminated Standard | Tactile Feedback | Blue LED | Button Rectangular | 3.6 VDC | Clear | 28 V | No Marking | Solder Quick Connect - 0.110" (2.8mm) | SPDT | On-Mom | 28 V | 50 °C | -25 °C | IP65 - Dust Tight Water Resistant | 16 mm | Panel Mount Front |
