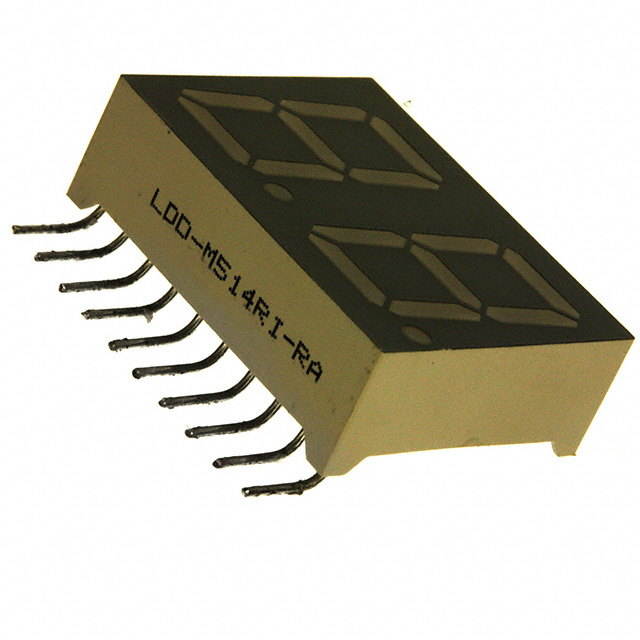

LDD-M514 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISP 7SEG 0.56" DBL RED 10SIP RA
| Part | Color | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Package / Case | Current - Test | Power Dissipation (Max) [Max] | Number of Characters | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Common Pin | Display Type | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Red | 3.9 mcd | 2 V | 10-SIP Right Angle | 10 mA | 105 mW | 2 | 8 mm | 0.315 in | 0.984 " | 0.748 in | 25 mm | 19 mm | Common Anode | 7-Segment | 0.56 in | 14.22 mm | 635 nm |
