PSA120U Series

Catalog

AC/DC DESKTOP ADAPTER 56V 120W

Part	Weight	Weight	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Operating Temperature [Max]	Cord Length	Cord Length	Region Utilized	Applications	Input Connector	Current - Output (Max) [Max]	Polarization	Efficiency	Power (Watts)	Output Connector [diameter]	Output Connector	Output Connector [z]	Form	Voltage - Output	Cord Length	Current - Output (Max)
Phihong USA PSA120U-560L6	1.8 lbs	816.5 g	Cord (Sold Separately)	5.98 in	1.46 in	73 mm	152 mm	37 mm	2.87 "	CE cULus GS	264 VAC	90 VAC	150 mW	40 °C	1.5 m	59 in	International	ITE (Commercial)	IEC 320-C14	2.14 A	Positive Center	CoC Tier 2 Level VI	120 W	2.5 mm 5.5 mm	Barrel Plug R/A	10 mm	Desktop (Class I)	56 V

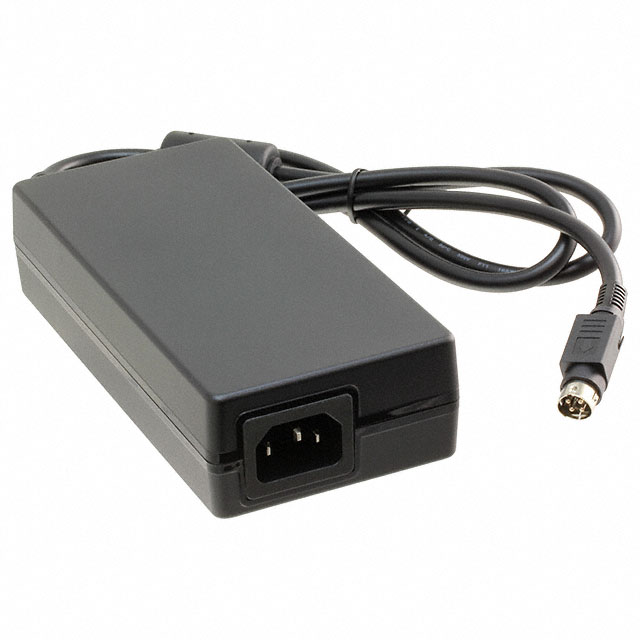

Phihong USA PSA120U-120L6	1.8 lbs	816.5 g	Cord (Sold Separately)	5.98 in	1.46 in	73 mm	152 mm	37 mm	2.87 "		264 VAC	90 VAC	150 mW	40 °C	39.4 in		International	ITE (Commercial)	IEC 320-C14	9 A		CoC Tier 2 Level VI	108 W		Power DIN 4 Pin		Desktop (Class I)	12 V	1 m

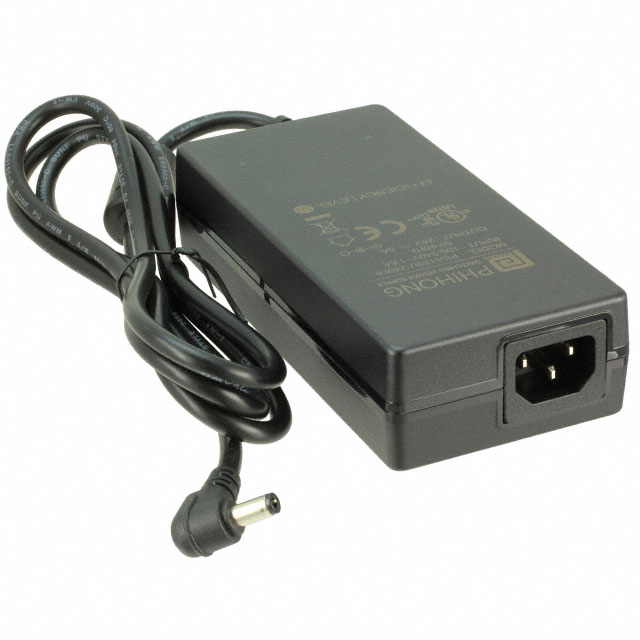

Phihong USA PSA120U-240L6	1.8 lbs	816.5 g	Cord (Sold Separately)	5.98 in	1.46 in	73 mm	152 mm	37 mm	2.87 "	CE cULus GS	264 VAC	90 VAC	150 mW	40 °C	1.5 m	59 in	International	ITE (Commercial)	IEC 320-C14		Positive Center	CoC Tier 2 Level VI	120 W	2.5 mm 5.5 mm	Barrel Plug R/A	10 mm	Desktop (Class I)	24 V		5 A
Phihong USA PSA120U-480L6	1.8 lbs	816.5 g	Cord (Sold Separately)	5.98 in	1.46 in	73 mm	152 mm	37 mm	2.87 "	CE cULus GS	264 VAC	90 VAC	150 mW	40 °C	1.5 m	59 in	International	ITE (Commercial)	IEC 320-C14	2.5 A	Positive Center	CoC Tier 2 Level VI	120 W	2.5 mm 5.5 mm	Barrel Plug R/A	10 mm	Desktop (Class I)	48 V
