504754 Series

0.30mm Pitch Easy-On Back Flip FPC Connector, LA75 Series, Right-Angle, Surface Mount, Dual Contact Style, 0.75mm Height, 33 Circuits

Manufacturer: Molex

Catalog

0.30mm Pitch Easy-On Back Flip FPC Connector, LA75 Series, Right-Angle, Surface Mount, Dual Contact Style, 0.75mm Height, 33 Circuits

Part	Mounting Type	Voltage Rating	Mating Cycles	Number of Positions	Connector/Contact Type	Housing Color	Locking Feature	Current Rating (Amps)	Termination	FFC, FCB Thickness	Contact Finish	Actuator Color	Housing Material	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Actuator Material	Pitch [x]	Pitch [x]	Cable End Type
Molex 5047540900	Surface Mount Right Angle	50 V	10	9	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tabbed

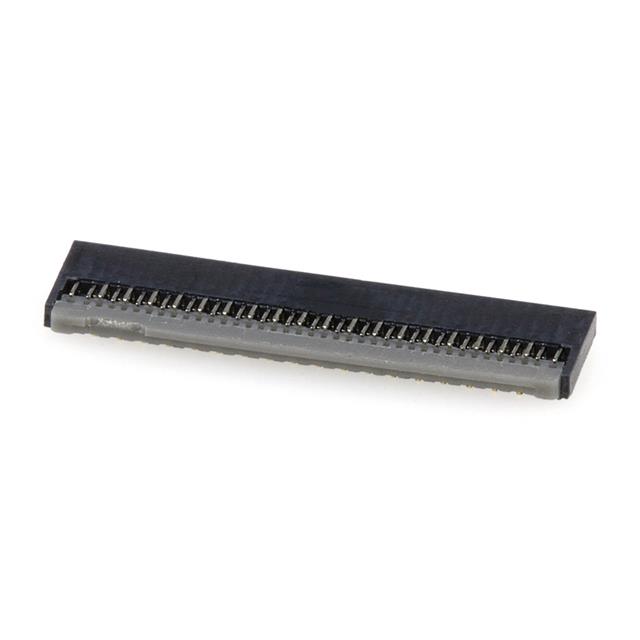

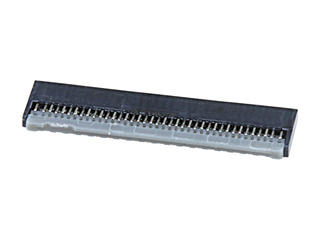

Molex 5047543700	Surface Mount Right Angle	50 V	10	37	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tabbed
Molex 5047540720	Surface Mount Right Angle	50 V	10	7	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tapered

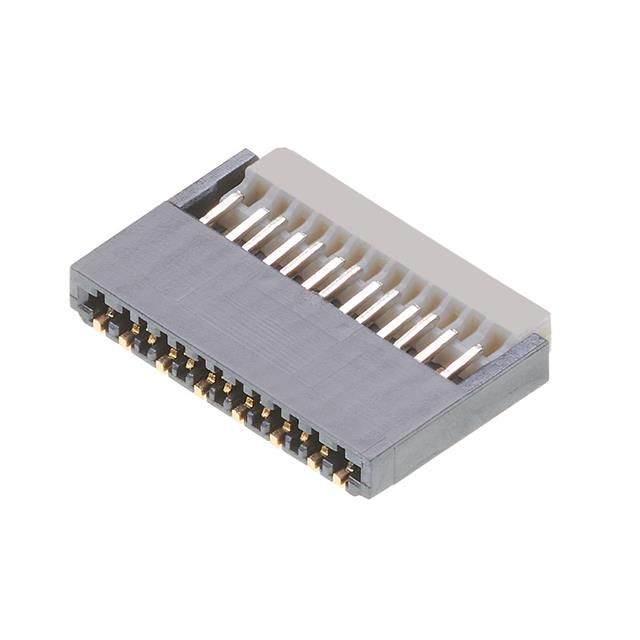

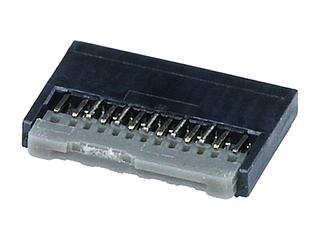

Molex 5047541100	Surface Mount Right Angle	50 V	10	11	Contacts Top and Bottom	Black	Backlock Flip Lock	300 mA	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tabbed

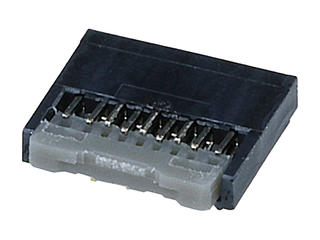

Molex 5047543320	Surface Mount Right Angle	50 V	10	33	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tapered

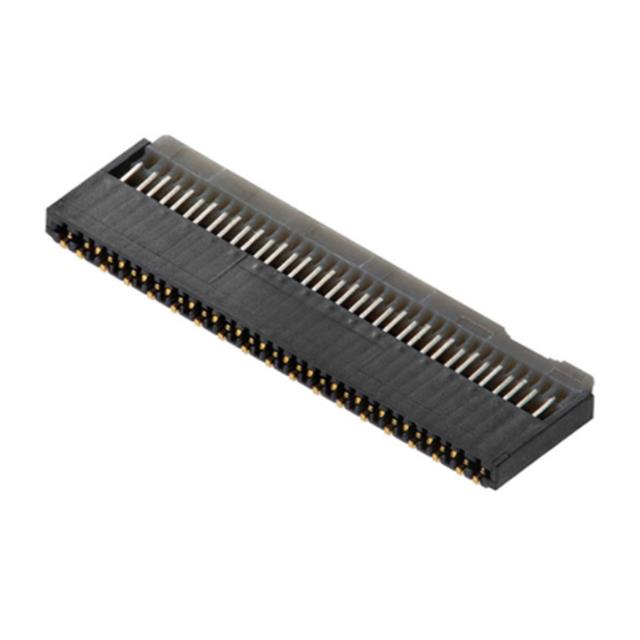

Molex 5047540700	Surface Mount Right Angle	50 V	10	7	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tabbed

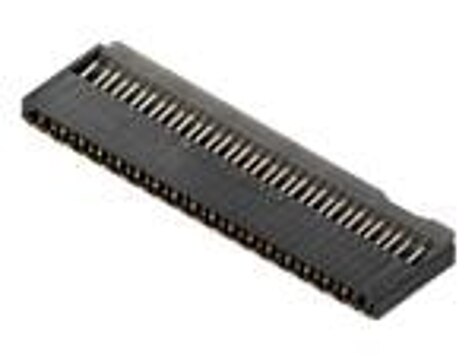

Molex 5047543540

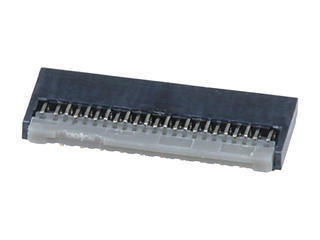

Molex 5047542100	Surface Mount Right Angle	50 V	10	21	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tabbed
Molex 5047543720	Surface Mount Right Angle	50 V	10	37	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Gray	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	85 °C	-40 °C	0.03 in	0.75 mm	FPC	Glass Filled Nylon Polyamide (PA)	0.012 in	0.3 mm	Tapered
Molex 5047541540	Surface Mount Right Angle	50 V	10	15	Contacts Top and Bottom	Black	Backlock Flip Lock	0.2 A	Solder	0.2 mm	Gold	Natural	Liquid Crystal Polymer (LCP) Glass Filled	UL94 V-0	Copper Alloy	125 °C	-40 °C	0.03 in	0.75 mm	FPC	Liquid Crystal Polymer (LCP) Glass Filled	0.012 in	0.3 mm	Tapered
