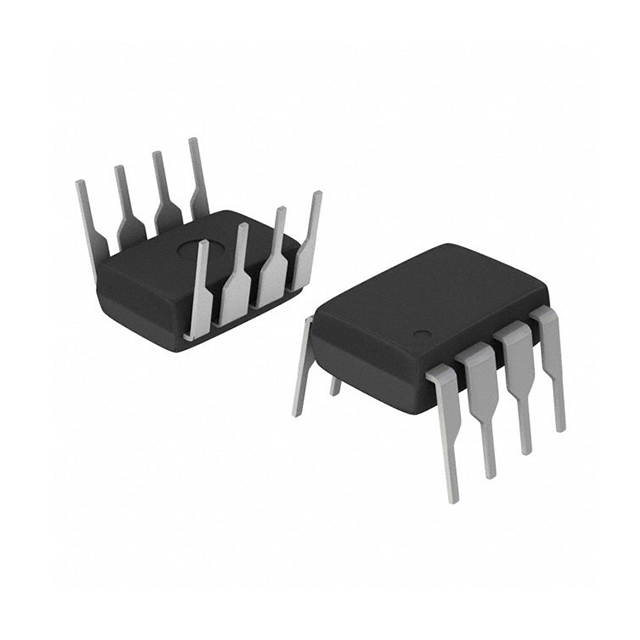

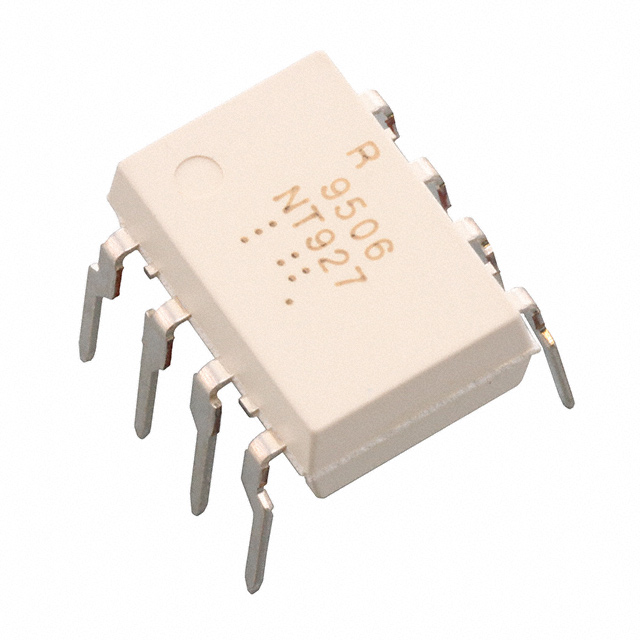

PS9506L3 Series

Manufacturer: Renesas Electronics Corporation

Catalog

0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN DIP PHOTOCOUPLER

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Number of Channels [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Mounting Type	Technology	Pulse Width Distortion (Max)	Current - Peak Output	Supplier Device Package	Approval Agency	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]
Renesas Electronics Corporation PS9506L3-V-E3-AX	50 ns	50 ns	30 V	10 V	25 kV/µs	1	400 mA	400 mA	1.56 V	-40 C	110 °C	25 mA	Surface Mount	Optical Coupling	250 ns	600 mA	8-DIP Gull Wing	CSA SEMKO UL VDE	400 ns	400 ns
Renesas Electronics Corporation PS9506L3-AX	50 ns	50 ns	30 V	10 V	25 kV/µs	1	400 mA	400 mA	1.56 V	-40 C	110 °C	25 mA	Surface Mount	Optical Coupling	250 ns	600 mA	8-DIP Gull Wing	CSA SEMKO UL	400 ns	400 ns
Renesas Electronics Corporation PS9506L3-V-AX	50 ns	50 ns	30 V	10 V	25 kV/µs	1	400 mA	400 mA	1.56 V	-40 C	110 °C	25 mA	Surface Mount	Optical Coupling	250 ns	600 mA	8-DIP Gull Wing	CSA SEMKO UL VDE	400 ns	400 ns
Renesas Electronics Corporation PS9506L3-AX	50 ns	50 ns	30 V	10 V	25 kV/µs	1	400 mA	400 mA	1.56 V	-40 C	110 °C	25 mA	Surface Mount	Optical Coupling	250 ns	600 mA	8-DIP Gull Wing	CSA SEMKO UL	400 ns	400 ns
Renesas Electronics Corporation PS9506L3-V-AX	50 ns	50 ns	30 V	10 V	25 kV/µs	1	400 mA	400 mA	1.56 V	-40 C	110 °C	25 mA	Surface Mount	Optical Coupling	250 ns	600 mA	8-DIP Gull Wing	CSA SEMKO UL VDE	400 ns	400 ns
