TLV245 Series

Catalog

IC OPAMP GP 4 CIRCUIT 16TSSOP

Part	Output Type	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Number of Circuits	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Amplifier Type	Package / Case [x]	Package / Case	Package / Case [y]	Mounting Type	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Gain Bandwidth Product	Supplier Device Package	Slew Rate	Package / Case	Package / Case	Package / Case [x]	Package / Case [x]
Texas Instruments TLV2455CPWR	Rail-to-Rail	6 V	10 mA	4	2.7 V	500 pA	General Purpose	0.173 in	16-TSSOP	4.4 mm	Surface Mount	300 çV	70 °C	0 °C	23 µA	220 kHz	16-TSSOP	0.11 V/µs
Texas Instruments TLV2455IPWR	Rail-to-Rail	6 V	10 mA	4	2.7 V	500 pA	General Purpose	0.173 in	16-TSSOP	4.4 mm	Surface Mount	300 çV	125 °C	-40 °C	23 µA	220 kHz	16-TSSOP	0.11 V/µs
Texas Instruments TLV2455CPWG4	Rail-to-Rail	6 V	10 mA	4	2.7 V	500 pA	General Purpose	0.173 in	16-TSSOP	4.4 mm	Surface Mount	300 çV	70 °C	0 °C	23 µA	220 kHz	16-TSSOP	0.11 V/µs

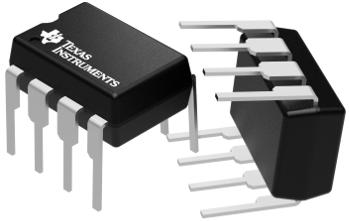

Texas Instruments TLV2450AIPE4	Rail-to-Rail	6 V	10 mA	1	2.7 V	500 pA	General Purpose		8-DIP		Through Hole	300 çV	125 °C	-40 °C	23 µA	220 kHz	8-PDIP	0.11 V/µs	0.3 in	7.62 mm
Texas Instruments TLV2450IP	Rail-to-Rail	6 V	10 mA	1	2.7 V	500 pA	General Purpose		8-DIP		Through Hole	300 çV	125 °C	-40 °C	23 µA	220 kHz	8-PDIP	0.11 V/µs	0.3 in	7.62 mm
Texas Instruments TLV2453IDRG4	Rail-to-Rail	6 V	10 mA	2	2.7 V	500 pA	General Purpose	0.154 in	14-SOIC	3.9 mm	Surface Mount	300 çV	125 °C	-40 °C	23 µA	220 kHz		0.11 V/µs
Texas Instruments TLV2453AIDRG4	Rail-to-Rail	6 V	10 mA	2	2.7 V	500 pA	General Purpose	0.154 in	14-SOIC	3.9 mm	Surface Mount	300 çV	125 °C	-40 °C	23 µA	220 kHz		0.11 V/µs
Texas Instruments TLV2450AID	Rail-to-Rail	6 V	10 mA	1	2.7 V	500 pA	General Purpose	0.154 in	8-SOIC	3.9 mm	Surface Mount	300 çV	125 °C	-40 °C	23 µA	220 kHz	8-SOIC	0.11 V/µs
Texas Instruments TLV2455CPW	Rail-to-Rail	6 V	10 mA	4	2.7 V	500 pA	General Purpose	0.173 in	16-TSSOP	4.4 mm	Surface Mount	300 çV	70 °C	0 °C	23 µA	220 kHz	16-TSSOP	0.11 V/µs
Texas Instruments TLV2453CDGSG4	Rail-to-Rail	6 V	10 mA	2	2.7 V	500 pA	General Purpose		10-MSOP 10-TFSOP		Surface Mount	300 çV	70 °C	0 °C	23 µA	220 kHz	10-VSSOP	0.11 V/µs			3 mm	0.118 in
