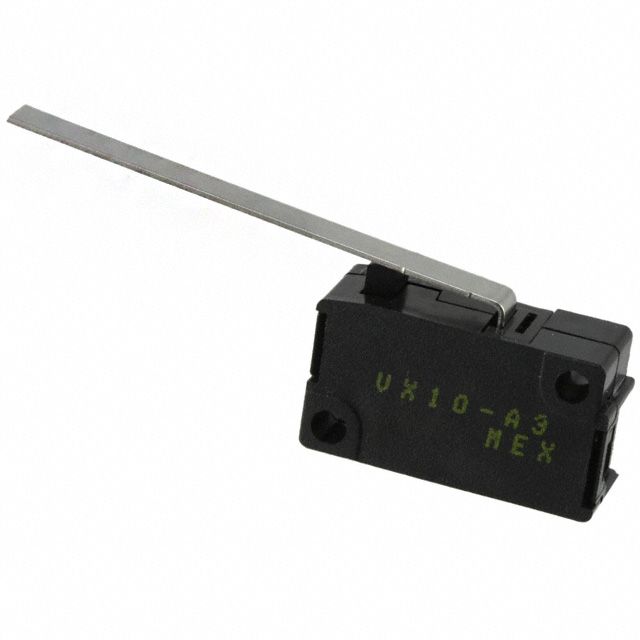

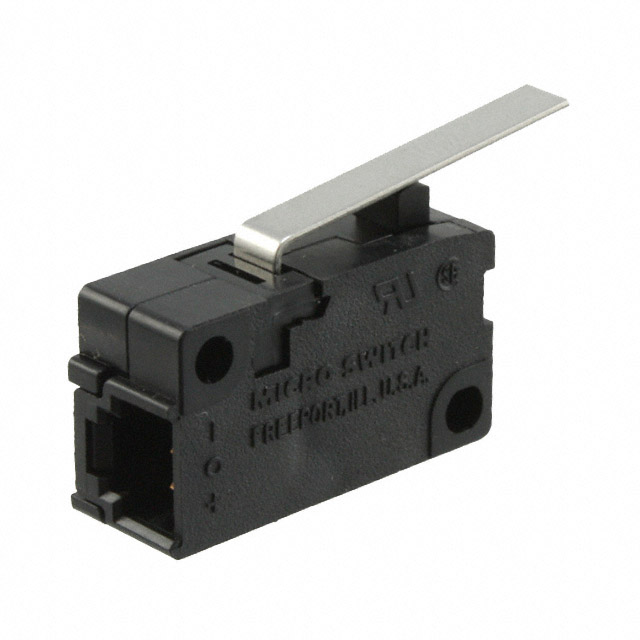

VX10-A Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT DGTL OC 10MA 24V
| Part | Circuit | Operating Position | Operating Position | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Overtravel [custom] | Overtravel [custom] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Differential Travel | Operating Force | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Digital Open Collector | 13.94 mm | 0.549 in | 10 mA | Off-Mom | 24 V | 2.16 mm | 0.085 " | Connector | 70 °C | -40 C | 0.1 mm | 0.004 in | 5 gf | Chassis Mount | Lever Straight |
 Honeywell Sensing and Productivity Solutions | Digital Open Collector | 12.6 mm | 0.497 in | 10 mA | Off-Mom | 24 V | 4.06 mm | 0.16 " | Connector | 70 °C | -40 C | 0.2 mm | 0.008 in | 3 gf | Chassis Mount | Lever Straight |
