4182 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

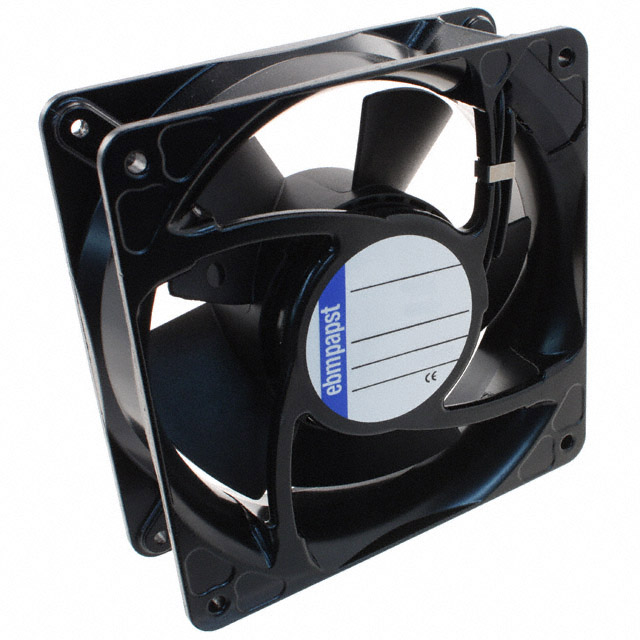

FAN AXIAL 119X38MM 12VDC TERM
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Termination | Weight | Weight | Width [y] | Noise | Fan Type | Approval Agency | Bearing Type | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Air Flow | RPM | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 85000 Hrs | 7 V | 15 V | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 2 | 0.86 lb | 390.09 g | 38 mm | 49 dB | Tubeaxial | CSA UL VDE | Ball | 12 VDC | 75 ░C | -30 ░C | 2.97 m³/min | 105.9 CFM | 3200 RPM | Square | 119 mm | 119 mm | 4.5 W |
 ebm-papst Inc. | 70000 Hrs | 7 V | 14 V | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 2 | 0.86 lb | 390.09 g | 38 mm | 57 dB | Tubeaxial | CSA UL VDE | Ball | 12 VDC | 55 °C | -30 ░C | 3.91 m³/min | 139.5 CFM | 4400 RPM | Square | 119 mm | 119 mm | 11 W |
