GW12LB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Approval Agency | Voltage Rating - AC | Actuator Marking | Current Rating (Amps) | Mounting Type | Circuit | Switch Function | Actuator Type | Color - Actuator/Cap | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

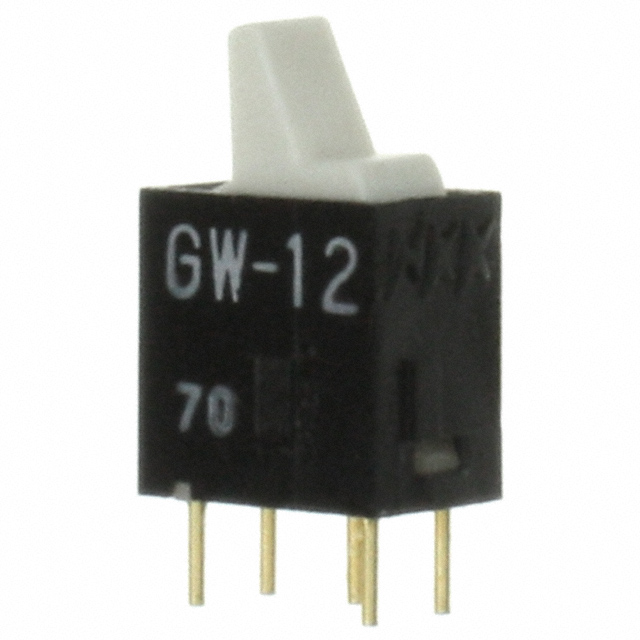

 NKK Switches | 50000 Cycles | 50000 Cycles | CSA UL | 28 V | No Marking | 0.4 VA | Through Hole | SPDT | On-On | Paddle | White | Sealed - Flux Protection | 85 °C | -30 ░C | 28 V | PC Pin |

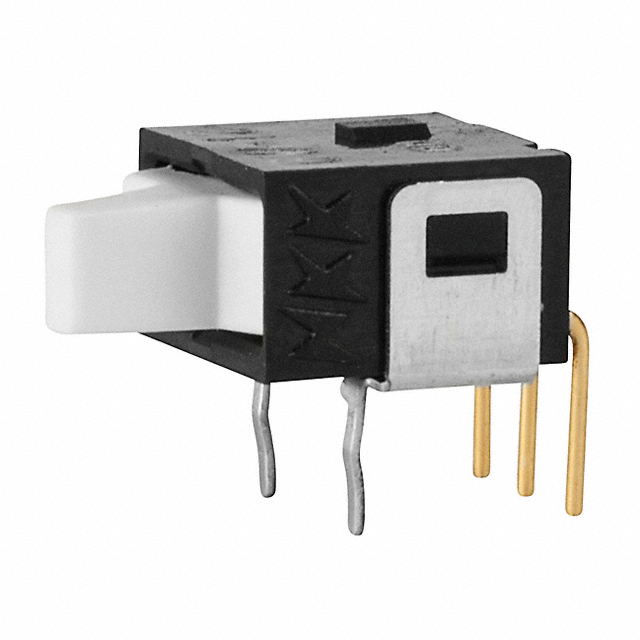

 NKK Switches | 50000 Cycles | 50000 Cycles | CSA UL | 28 V | No Marking | 0.4 VA | Right Angle Through Hole | SPDT | On-On | Paddle | White | Sealed - Flux Protection | 85 °C | -30 ░C | 28 V | PC Pin |
 NKK Switches | 50000 Cycles | 50000 Cycles | CSA UL | 28 V | No Marking | 0.4 VA | Right Angle Through Hole Vertical | SPDT | On-On | Paddle | White | Sealed - Flux Protection | 85 °C | -30 ░C | 28 V | PC Pin |
