2301997 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

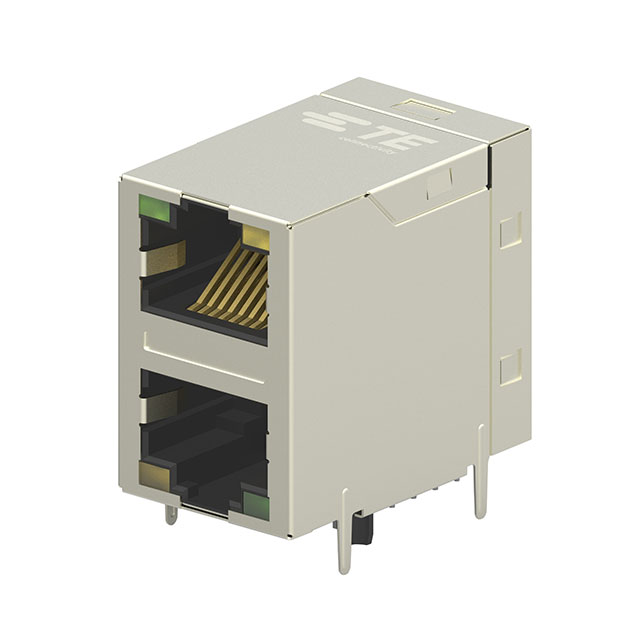

RJ45 CONNECTOR, R/A JACK, 2PORT, TH ROHS COMPLIANT: YES
| Part | Number of Cores per Jack | Applications | Mounting Type | LED Color | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Contact Finish | Termination | Connector Type | Shield Material | Height Above Board [z] | Height Above Board [z] | Number of Ports | Housing Material | Shielding | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 8 | 10/100/1000 Base-T AutoMDIX | Through Hole | Green Yellow | Copper Alloy | 0.76 Ám | 30 Áin | Up and Down | Gold | Solder | RJ45 | Brass | 25.78 mm | 1.015 " | 2 | Liquid Crystal Polymer (LCP) | Shielded | 90 ° | 85 °C | -40 °C | 2 |
