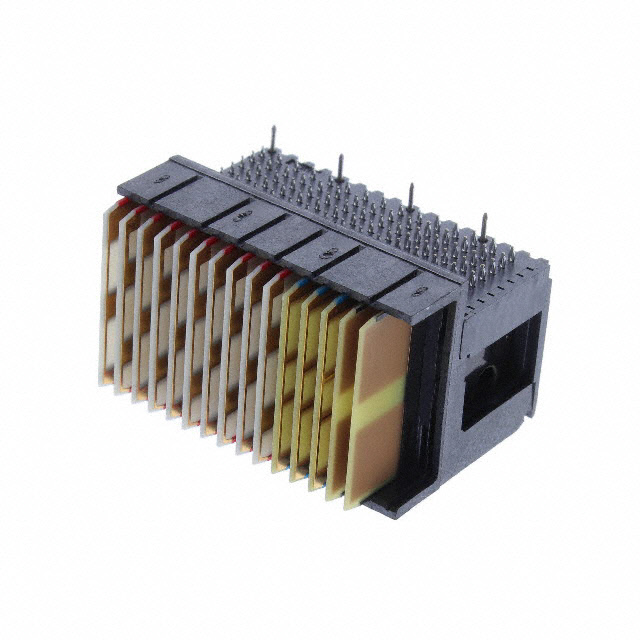

2302794 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RAPLUGASSYCENTERRP0RTMVPXMGRT3
| Part | Number of Columns | Connector Style | Pitch [x] | Pitch [x] | Features | Contact Finish | Termination | Connector Type | Connector Usage | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 16 | Center VITA 46 | 0.071 in | 1.8 mm | Board Guide | Gold | Press-Fit | Plug Male Blades | Daughtercard | 7 | -55 °C | 125 °C | 105 | 112 | Board Edge Right Angle Through Hole | 50 µin | 1.27 µm | Black | 4 | 20 | 31 | 20 | UL94 V-0 |
