T 3504 Series

Catalog

CONN PLUG HSNG MALE 8POS INLINE

Part	Shell Size - Insert	Contact Shape	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Type	Ingress Protection	Housing Color	Features	Fastening Type	Connector Type	Shielding	Material Flammability Rating	Insert Material	Mounting Type	Contact Type	Orientation	Contact Size	Shell Finish	Color	Primary Material	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)

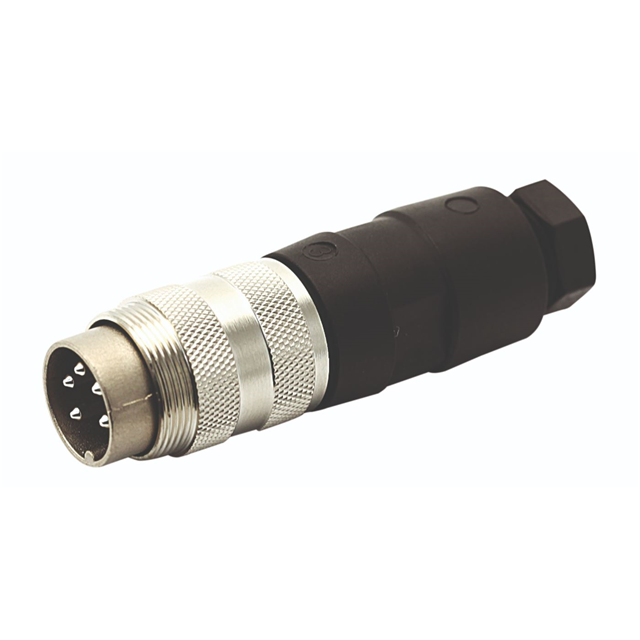

Amphenol Tuchel Industrial T 3504 554	M16-8	Circular	8	Contacts Not Included	-40 C	100 °C	Die Cast	For Male Pins	IP40	Black Silver	Backshell Cable Clamp Coupling Nut	Threaded	Plug Housing	Shielded	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	Crimp	Keyed	1.5 mm	Nickel

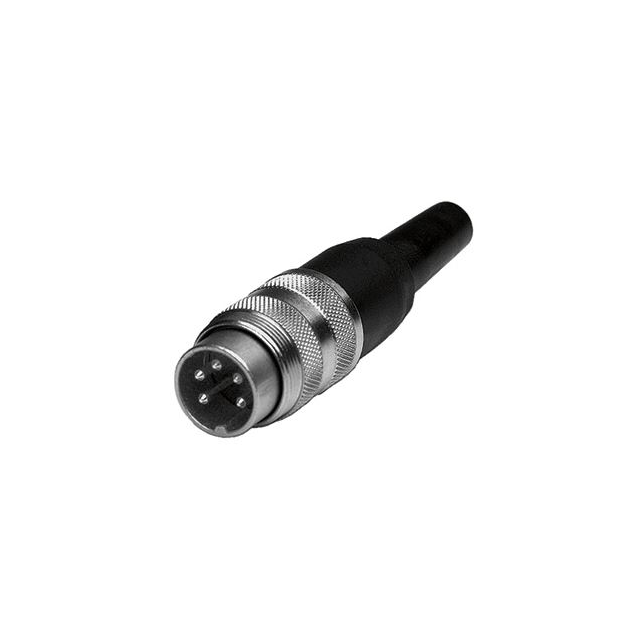

Amphenol Tuchel Industrial T 3504 551	M16-8	Circular	8	Contacts Not Included	-40 C	100 °C	Die Cast	For Male Pins	IP40	Silver	Cable Clamp Coupling Nut Strain Relief	Threaded	Plug Housing	Shielded	UL94 V-0	Thermoplastic	Free Hanging (In-Line)	Crimp	Keyed	1.5 mm	Nickel
Amphenol Tuchel Industrial T 3504 028	M16-8		8		-40 C	100 °C	Die Cast		IP40		Cable Clamp Strain Relief	Threaded	Plug Male Pins	Shielded			Free Hanging (In-Line)		Keyed		Nickel	Silver	Metal	Gold	250 V	7 A
Amphenol Tuchel Industrial T 3504 004	M16-8		8		-40 C	100 °C	Die Cast		IP40		Cable Clamp Strain Relief	Threaded	Plug Male Pins	Shielded			Free Hanging (In-Line)		Keyed		Nickel	Silver	Metal	Silver	250 V	7 A
Amphenol Tuchel Industrial T 3504 002	M16-8		8		-40 C	100 °C	Die Cast		IP40		Cable Clamp Strain Relief	Threaded	Plug Male Pins	Shielded			Free Hanging (In-Line)		Keyed		Nickel	Silver	Metal	Silver	250 V	7 A
