A1DXH Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - AKR24H/AE24M/X

Part	Number of Positions	Connector Type	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Length	Length	Pitch - Cable	Pitch - Cable	Features	Color	Number of Positions [custom]
TE Connectivity AMP Connectors A1DXH-2436M	24	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief	Multiple Ribbon

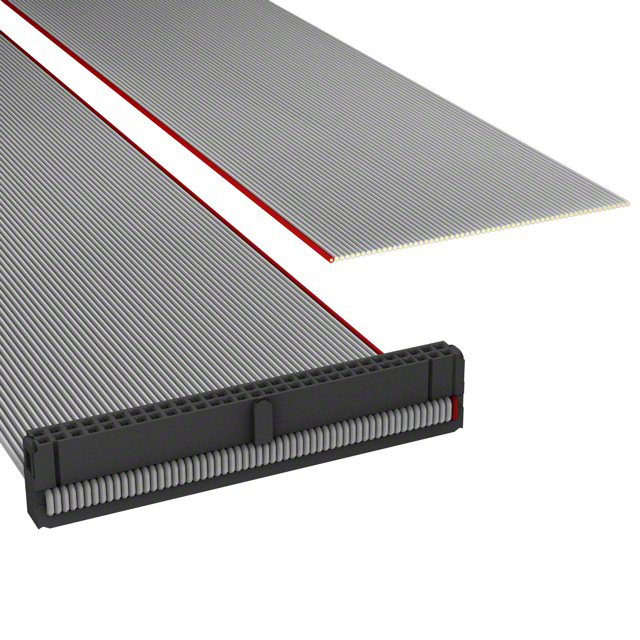

TE Connectivity AMP Connectors A1DXH-6036G	60	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief
TE Connectivity AMP Connectors A1DXH-4436G	44	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief
TE Connectivity AMP Connectors A1DXH-1436G	14	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief

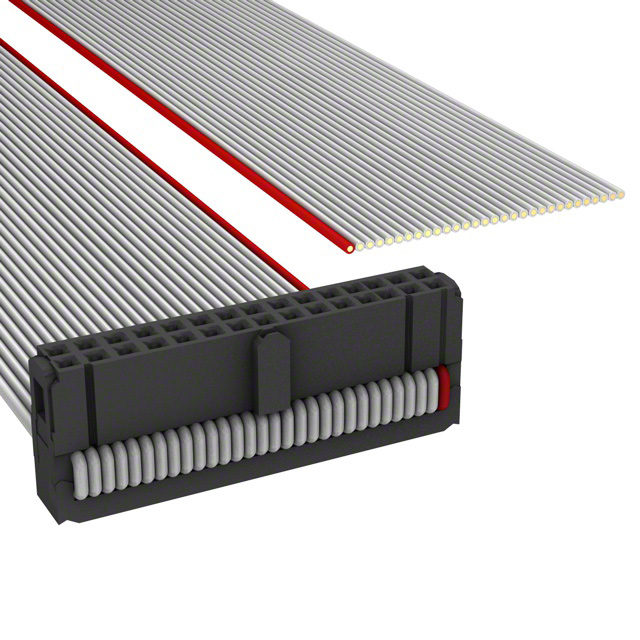

TE Connectivity AMP Connectors A1DXH-3036G	30	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief
TE Connectivity AMP Connectors A1DXH-1036M	10	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief	Multiple Ribbon
TE Connectivity AMP Connectors A1DXH-1036G	10	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief
TE Connectivity AMP Connectors A1DXH-3436M		Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief	Multiple Ribbon	34
TE Connectivity AMP Connectors A1DXH-6436M	64	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief	Multiple Ribbon
TE Connectivity AMP Connectors A1DXH-5036M	50	Socket to Cable	Unshielded	0.1 in	2.54 mm	IDC	0.38 µm	15 µin	Gold	2	91.44 cm	3 ft	0.05 in	1.27 mm	Polarizing Key Strain Relief	Multiple Ribbon
