200AWMSP2 Series
Manufacturer: E-Switch
Beta
⌘K

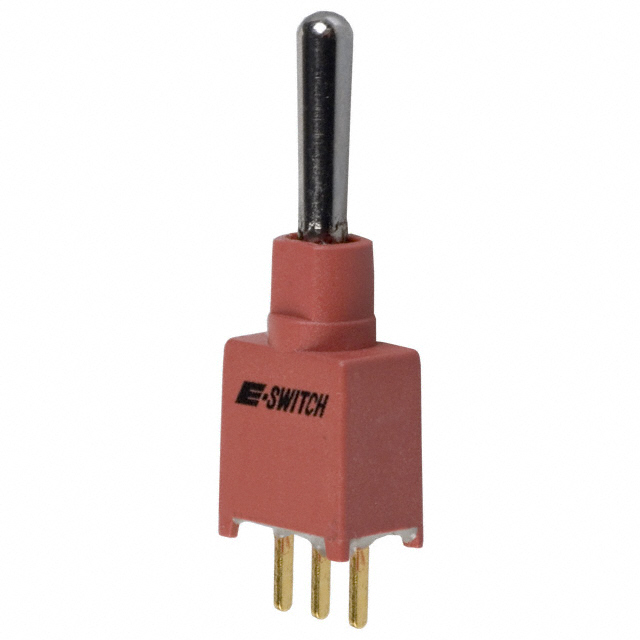

SWITCH TOGGLE SPDT 0.4VA 20V
| Part | Electrical Life | Actuator Material | Illumination | Switch Function | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Ingress Protection | Actuator Length [x] | Features | Voltage Rating - DC | Circuit | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | On-Mom | 20 V | Unthreaded | 0.4 VA | IP67 - Dust Tight Waterproof | 6.1 mm | Epoxy Sealed Terminals | 20 V | SPDT | Standard Round | PC Pin | 85 °C | -30 ░C | Through Hole |
 E-Switch | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | On-Mom | 20 V | Unthreaded | 0.4 VA | IP67 - Dust Tight Waterproof | 10.16 mm | Epoxy Sealed Terminals | 20 V | SPDT | Standard Round | PC Pin | 85 °C | -30 ░C | Through Hole |
E-Switch | 50000 Cycles | Brass Chrome Plated | Non-Illuminated | On-Mom | 120 V | Unthreaded | 3 A | IP67 - Dust Tight Waterproof | 10.16 mm | Epoxy Sealed Terminals | 28 V | SPDT | Standard Round | PC Pin | 85 °C | -30 ░C | Through Hole |
