TPS543620 Series
Manufacturer: Texas Instruments
Beta
⌘K
4-V TO 18-V INPUT 6-A SYNCHRONOU
| Part | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Current - Output | Supplied Contents | Frequency - Switching | Regulator Topology | Utilized IC / Part | Main Purpose | Outputs and Type | Outputs and Type | Topology | Mounting Type | Voltage - Output (Max) [Max] | Voltage - Input (Max) [Max] | Function | Voltage - Input (Min) [Min] | Voltage - Output (Min/Fixed) [Min] | Synchronous Rectifier | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Output Configuration | Package / Case | Number of Outputs | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

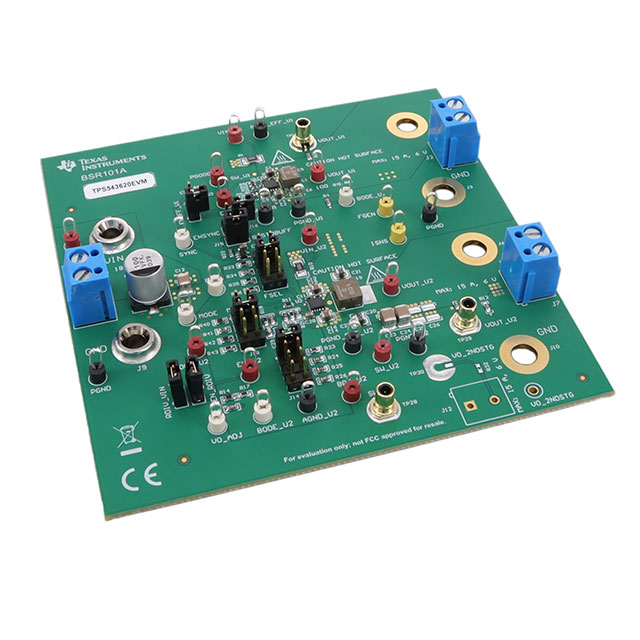

 Texas Instruments | Fully Populated | 4 V | 18 V | 1 V | 6 A | Board(s) | 1 MHz | Buck | TPS543620 | DC/DC Step Down | Non-Isolated | 1 | |||||||||||||||
 Texas Instruments | 6 A | 1 MHz 1.5 MHz 2.2 MHz 500 kHz 750 kHz | Buck | Surface Mount | 5.5 V | 18 V | Step-Down | 4 V | 0.5 V | 150 °C | -40 °C | 14-VQFN-HR (2.5x3) | Positive | 14-PowerVFQFN | 1 | Adjustable |
