XC6223 Series

Catalog

IC REG LINEAR 3.55V 300MA SSOT24

...

Part	Voltage Dropout (Max) [Max]	Package / Case	Current - Output	Output Configuration	Protection Features	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Control Features	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	PSRR	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max)
Torex Semiconductor Ltd XC6223N35BNR-G	0.305 V	SC-82	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SSOT-24	-40 °C	105 °C	3.55 V	1	80 dB
Torex Semiconductor Ltd XC6223T321NR-G	0.305 V	SC-82	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SSOT-24	-40 °C	105 °C	3.2 V	1	80 dB
Torex Semiconductor Ltd XC6223N331MR-G	0.305 V	SC-74A SOT-753	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SOT-25	-40 °C	105 °C	3.3 V	1	80 dB
Torex Semiconductor Ltd XC6223N16BNR-G	0.44 V	SC-82	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SSOT-24	-40 °C	105 °C		1	80 dB	1.65 V
Torex Semiconductor Ltd XC6223N34BGR-G	0.305 V	4-UDFN Exposed Pad	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	4-USP (1.2x1.6)	-40 °C	105 °C		1	80 dB	3.45 V
Torex Semiconductor Ltd XC6223N261MR-G		SC-74A SOT-753	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SOT-25	-40 °C	105 °C		1	80 dB	2.6 V	0.35 V
Torex Semiconductor Ltd XC6223N24BGR-G	0.38 V	4-UDFN Exposed Pad	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	4-USP (1.2x1.6)	-40 °C	105 °C	2.45 V	1	80 dB
Torex Semiconductor Ltd XC6223T141NR-G	0.52 V	SC-82	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SSOT-24	-40 °C	105 °C		1	80 dB	1.4 V
Torex Semiconductor Ltd XC6223N301MR-G	0.305 V	SC-74A SOT-753	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	SOT-25	-40 °C	105 °C	3 V	1	80 dB

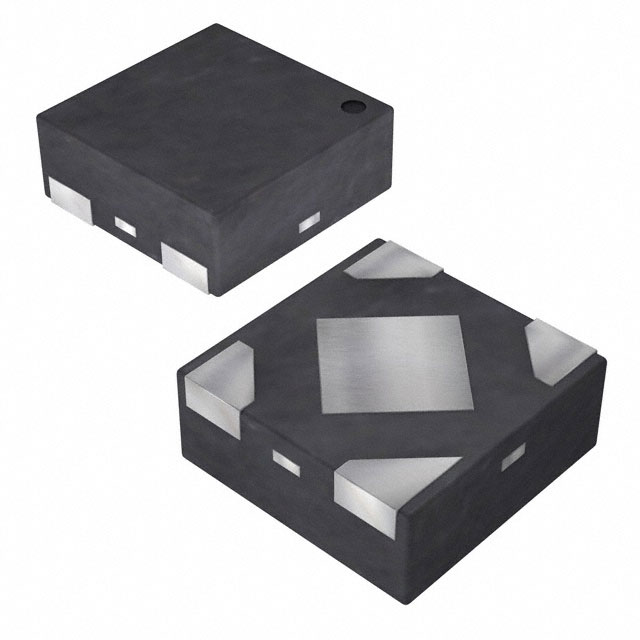

Torex Semiconductor Ltd XC6223T2719R-G		4-XDFN Exposed Pad	300 mA	Positive	Over Current Over Temperature	220 µA	5.5 V	Enable	Surface Mount	USPQ-4B03	-40 °C	105 °C	2.7 V	1	80 dB		0.35 V
