MC07XS6517 Series

Catalog

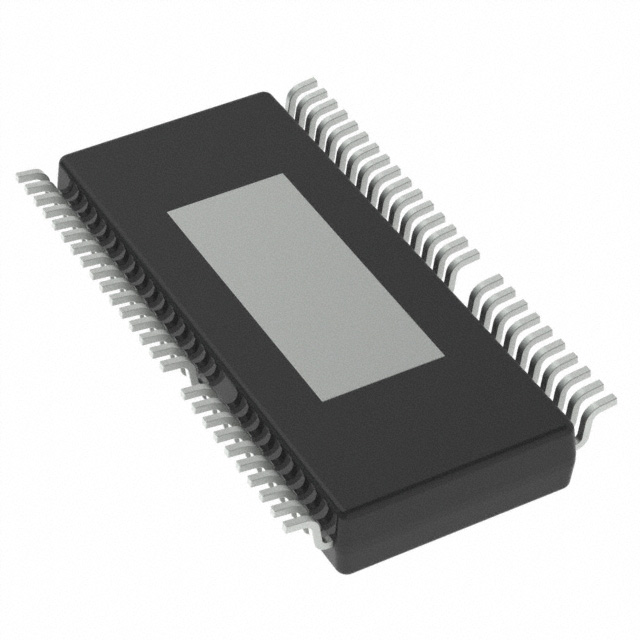

HIGH-SIDE SWITCH, 12V, TRIPLE 7MOHM + DUAL 17MOHM, SOICEP 54, RAIL/ REEL ROHS COMPLIANT: YES

Part	Interface	Output Type	Ratio - Input:Output [custom]	Number of Outputs	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Package / Case	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Rds On (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Fault Protection	Supplier Device Package	Switch Type	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Features
Freescale Semiconductor - NXP MC07XS6517DEKR2	SPI	N-Channel	2:3	6	5.5 V	4.5 V	0.295 in	7.5 mm	54-SSOP	18 V	7 V	Surface Mount	7 mOhm 17 mOhm	-40 °C	125 °C	High Side	Current Limiting (Fixed) Open Load Detect Over Temperature	54-HSOP	General Purpose	5.5 A	11 A	Internal PWM
Freescale Semiconductor - NXP MC07XS6517DEK	SPI	N-Channel	2:3	6	5.5 V	4.5 V	0.295 in	7.5 mm	54-SSOP	18 V	7 V	Surface Mount	7 mOhm 17 mOhm	-40 °C	125 °C	High Side	Current Limiting (Fixed) Open Load Detect Over Temperature	54-HSOP	General Purpose	5.5 A	11 A	Internal PWM
