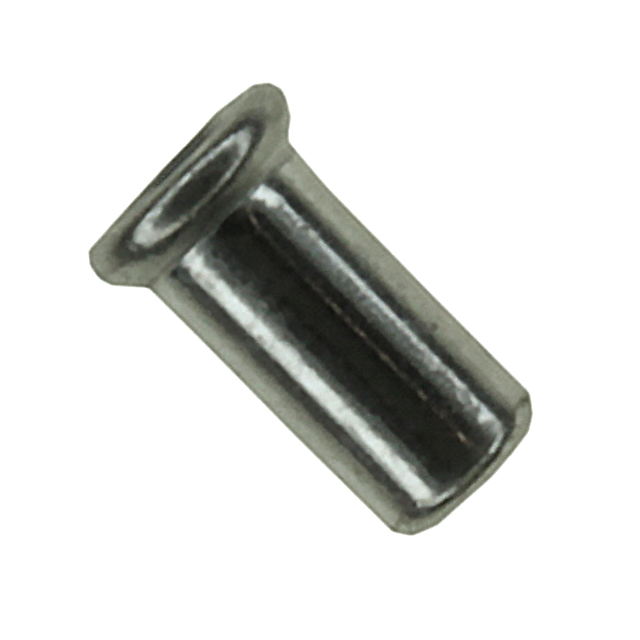

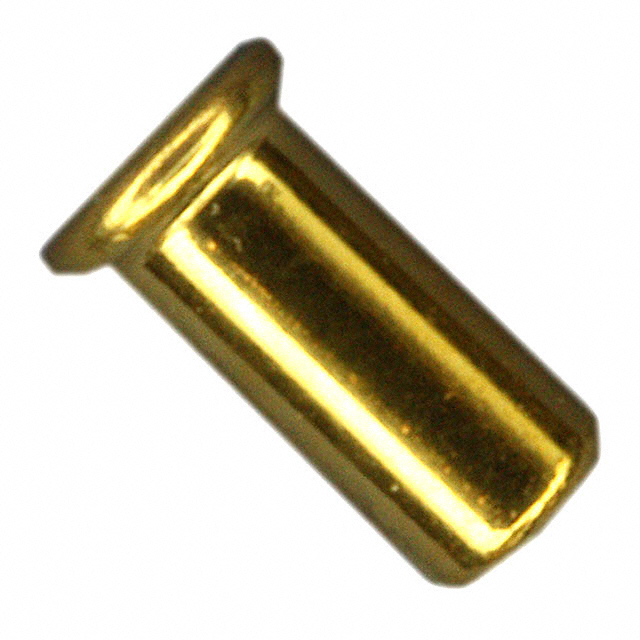

331677 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

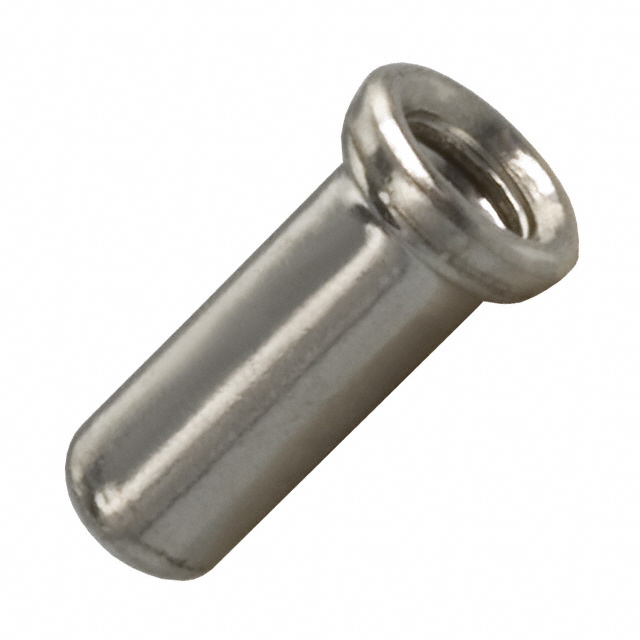

CONN PIN RCPT .026-.029 SOLDER

Part	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Tail Type	Features	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
TE Connectivity Raychem Cable Protection 1-331677-1	0.76 Ám	30 Áin	0.125 in	3.18 mm	0.08 in	2.03 mm	125 °C	-65 ░C	Beryllium Copper	No Tail	Closed Bottom	3.51 mm	0.138 in	Solder	0.063 in	1.57 mm	1.6 mm	0.062 in	0.026 in	0.74 mm	0.66 mm	0.029 in	Gold
TE Connectivity Raychem Cable Protection 1-331677-8	0.76 Ám	30 Áin	0.125 in	3.18 mm	0.08 in	2.03 mm	125 °C	-65 ░C	Beryllium Copper	No Tail	Closed Bottom	3.51 mm	0.138 in	Solder	0.063 in	1.57 mm	1.6 mm	0.062 in					Gold	0.03 "	0.033 "	0.76 mm	0.84 mm
TE Connectivity Raychem Cable Protection 1-331677-4	0.76 Ám	30 Áin	0.125 in	3.18 mm	0.08 in	2.03 mm	125 °C	-65 ░C	Beryllium Copper	No Tail	Closed Bottom	3.51 mm	0.138 in	Solder	0.063 in	1.57 mm	1.6 mm	0.062 in					Gold	0.03 "	0.033 "	0.76 mm	0.84 mm
TE Connectivity Raychem Cable Protection 1-331677-6	2.54 µm	100 µin	0.125 in	3.18 mm	0.08 in	2.03 mm	125 °C	-65 ░C	Beryllium Copper	No Tail	Closed Bottom	3.51 mm	0.138 in	Solder	0.063 in	1.57 mm	1.6 mm	0.062 in	0.022 in	0.64 mm	0.56 mm	0.025 in	Tin
