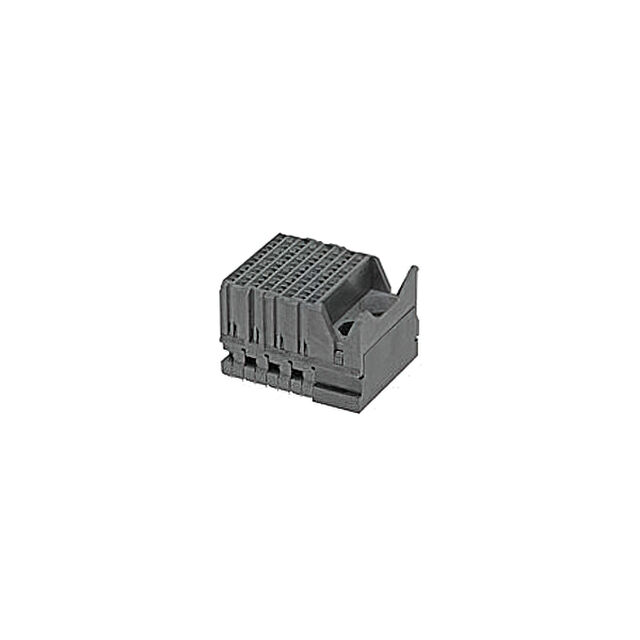

Impact 85 Ohm Plus 4 Pair Mezzanine Receptacle, Stack Height 25.00mm, Unguided, 16 Columns, 192 Circuits, Lead Free
Impact 85 Ohm Plus 4 Pair Mezzanine Receptacle, Stack Height 25.00mm, Unguided, 16 Columns, 192 Circuits, Lead Free
Impact 85 Ohm Plus 4 Pair Mezzanine Receptacle, Stack Height 25.00mm, Unguided, 16 Columns, 192 Circuits, Lead Free
| Part | Contact Finish | Features | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Number of Positions | Number of Rows | Voltage Rating | Number of Columns | Contact Layout, Typical | Connector Style | Contact Layout, Typical | Number of Columns [custom] | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Gold | Board Guide | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Through Hole | 96 | 12 | 30 VDC | 8 | 32 Differential Pairs | |||||
Molex | Gold | UL94 HB UL94 V-0 | 0.76 Ám | 30 Áin | Solder | Receptacle Female Sockets | All | Through Hole | 96 | 12 | 8 | 32 Differential Pairs | ||||||||||
 Molex | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Board Edge Right Angle Through Hole | 120 | 12 | 30 VDC | 10 | 40 Differential Pairs | Impact | |||||
Molex | Gold | Board Guide | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Through Hole | 120 | 12 | 30 VDC | 10 | 40 Differential Pairs | Guide Left Impact | ||||
Molex | Gold | Board Guide | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Through Hole | 192 | 12 | 30 VDC | 16 | Guide Left Impact | 64 Differential Pairs | ||||
Molex | Gold | Board Guide | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Through Hole | 216 | 12 | 30 VDC | Guide Left Impact | 72 Differential Pairs | 18 | ||||
Molex | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Solder | Receptacle Female Sockets | All | Through Hole | 56 | 12 | 14 | Impact | 56 Differential Pairs | |||||||||
Molex | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Solder | Receptacle Female Sockets | All | Through Hole | 192 | 12 | 16 | Impact | 64 Differential Pairs | |||||||||
Molex | Gold | Board Guide | UL94 V-0 | 0.76 Ám | 30 Áin | Solder | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Through Hole | 192 | 12 | 30 VDC | 16 | 64 Differential Pairs | 0.075 in | 1.9 mm | |||
Molex | Gold | UL94 V-0 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle Female Sockets | All | 85 °C | -55 °C | Gray | Board Edge Right Angle Through Hole | 144 | 12 | 30 VDC | 12 | Impact | 48 Differential Pairs |
