NLAS3158 Series

Catalog

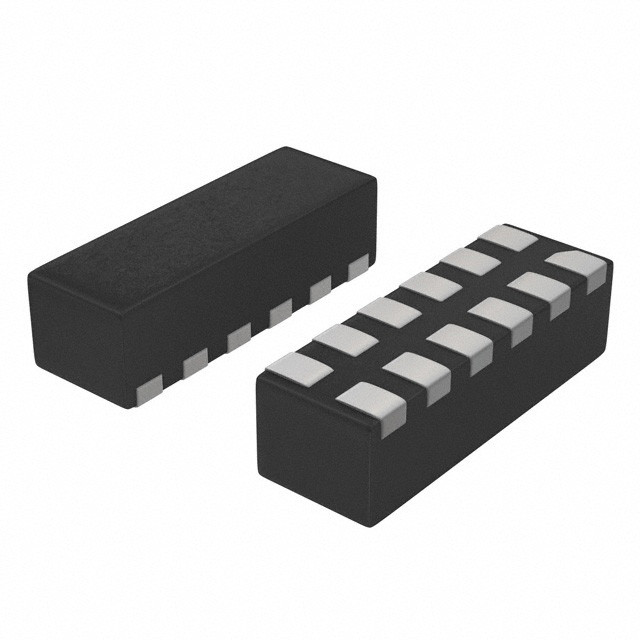

IC SWITCH SPDT X 2 13OHM 12DFN

Part	-3db Bandwidth	On-State Resistance (Max) [Max]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max) [Max]	Package / Case	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Mounting Type	Supplier Device Package	Charge Injection	Switch Circuit	Number of Circuits	Crosstalk
ON Semiconductor NLAS3158MNR2G	250 MHz	13 Ohm	2.3 pF	2.3 pF	1.65 V	5.5 V	125 °C	-55 °C	3.5 ns	5.2 ns	100 nA	12-WFDFN Exposed Pad	150 mOhm	2:1	Surface Mount	12-DFN (3x1)	7 pC	SPDT	2	-54 dB
