PPPN131 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

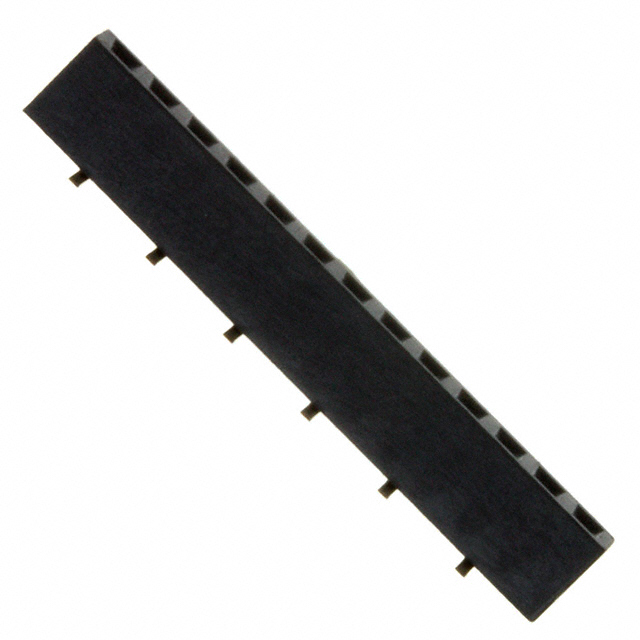

CONN HDR 13POS 0.079 GOLD SMD
| Part | Contact Material | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Number of Positions | Contact Finish - Post | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Contact Type | Contact Finish Thickness - Mating | Number of Positions Loaded | Connector Type | Insulation Color | Current Rating (Amps) | Termination | Voltage Rating | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Polyester | Flash | 13 | Gold | Push-Pull | -40 C | 105 ░C | 1 | 0.079 " | 2 mm | Gold | 0.181 in | 4.6 mm | Female Socket | Flash | All | Header | Black | 2 A | Solder | 150 VDC | UL94 V-0 | Surface Mount |
