G6CWAM-P Series
Manufacturer: ODU
Beta
⌘K

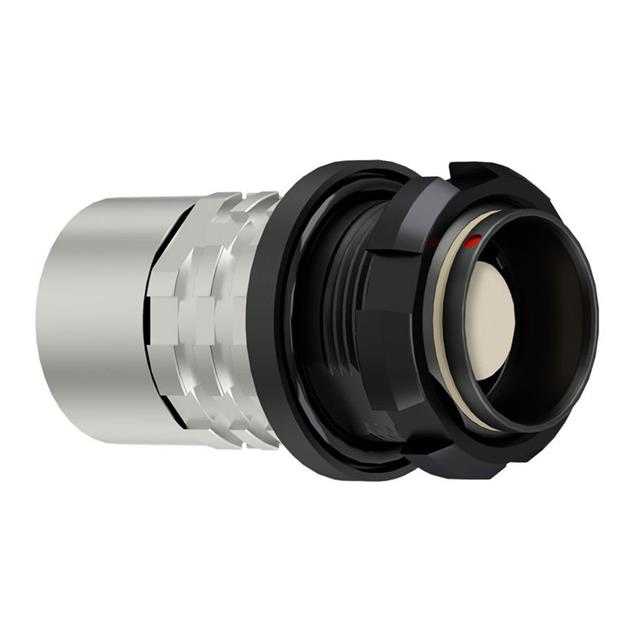

ODU AMC HD RECEPT, STY 6, SZ C,
| Part | Color | Insert Material | Applications | Fastening Type | Contact Material | Mounting Type | Number of Positions | Cable Opening | Cable Opening | Shielding | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Features | Contact Finish - Mating | Material Flammability Rating | Orientation | Mounting Feature | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Size - Insert | Primary Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Black Silver | Polyetheretherketone (PEEK) | Industrial Medical Military | Detent Lock Push-Pull | Copper Alloy | Panel Mount | 4 | 0.197 in | 5 mm | Shielded | Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | Brass | Backshell | Gold | UL94 V-0 | A | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | -51 °C | 125 °C | Receptacle Female Sockets | 00 | Metal | ||
Black Silver | Polyetheretherketone (PEEK) | Industrial Medical Military | Detent Lock Push-Pull | Copper Alloy | Panel Mount | 2 | 0.197 in | 5 mm | Shielded | Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | Brass | Backshell | Gold | UL94 V-0 | A | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | -51 °C | 125 °C | Receptacle Female Sockets | 00 | Metal | 3 A | |
Black Silver | Polyetheretherketone (PEEK) | Industrial Medical Military | Detent Lock Push-Pull | Copper Alloy | Panel Mount | 7 | 0.197 in | 5 mm | Shielded | Ruthenium over Electroless Nickel | 50 µin | 1.27 µm | Brass | Backshell | Gold | UL94 V-0 | A | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | -51 °C | 125 °C | Receptacle Female Sockets | 00 | Metal |
