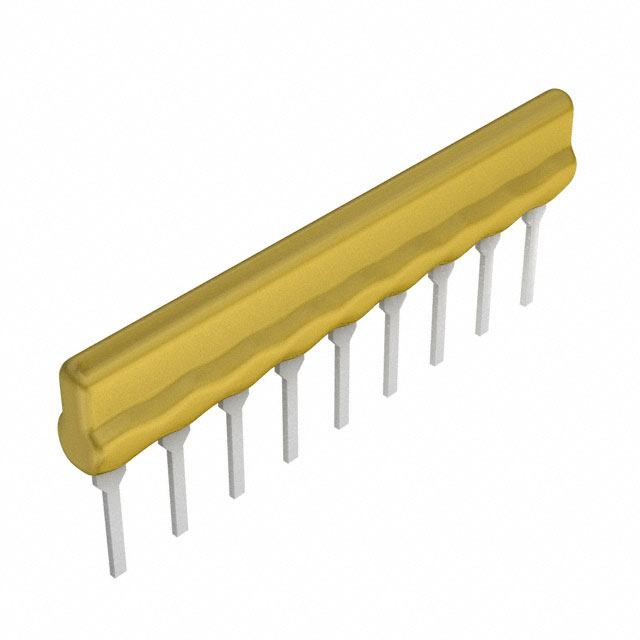

4609X Series
Manufacturer: Bourns Inc.
Beta
⌘K
RESISTORS NETWORK - THICK FILM CONFORMAL SIP ROHS COMPLIANT: YES
| Part | Tolerance | Resistance (Ohms) [custom] | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Number of Resistors | Supplier Device Package | Power Per Element | Operating Temperature [Min] | Operating Temperature [Max] | Circuit Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Number of Pins | Resistance (Ohms) | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2 % | 4.7 kOhms | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 180 Ohms | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 82 Ohms | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 2.7 k | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | 41 kOhms | |||
 Bourns Inc. | 250 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | 39 Ohms | ±1Ohm | |||
Bourns Inc. | 2 % | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | 150k | |||
Bourns Inc. | 2 % | 4.7 kOhms | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 56 Ohms | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | |||
Bourns Inc. | 2 % | 100 ppm/°C | 5.08 mm | 0.2 in | Through Hole | 8 | 9-SIP | 200 mW | -55 C | 125 °C | Bussed | 22.81 mm | 0.098 in | 0.898 in | 2.49 mm | 9-SIP | 9 | 20 kOhms |
