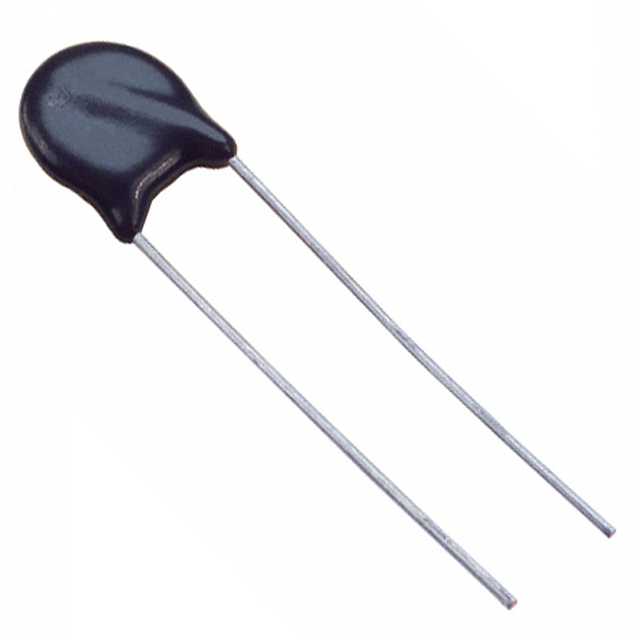

ERZ-V10 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VARISTOR 22V 1KA DISC 10MM

Part	Varistor Voltage (Typ)	Package / Case	Number of Circuits	Maximum DC Volts [Max]	Energy	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Varistor Voltage (Max) [Max]	Current - Surge	Capacitance @ Frequency	Maximum AC Volts [Max]	Package / Case [diameter]
Panasonic Industrial Automation Sales ERZ-V10D220	22 V	Disc 11.5mm	1	18 V	3.2 J	20 V	85 °C	-40 °C	Through Hole	24 V	1 kA	11000 pF	14 V
Panasonic Industrial Automation Sales ERZ-V10V820CS	82 V	Disc	1	65 V	14 J	74 V	85 °C	-40 °C	Through Hole	90 V	3.5 kA	2000 pF	50 V	10 mm
Panasonic Industrial Automation Sales ERZ-V10D102	1 kV	Disc	1	825 V	140 J	900 V	85 °C	-40 °C	Through Hole	1.1 kV	3.5 kA	110 pF	625 V	12.5 mm
Panasonic Industrial Automation Sales ERZ-V10D271	270 V	Disc 11.5mm	1	225 V	49 J	247 V	85 °C	-40 °C	Through Hole	303 V	3.5 kA	350 pF	175 V
Panasonic Industrial Automation Sales ERZ-V10D681	680 V	Disc	1	560 V	92 J	612 V	85 °C	-40 °C	Through Hole	748 V	3.5 kA	170 pF	420 V	12.5 mm
Panasonic Industrial Automation Sales ERZ-V10V201CS	200 V	Disc	1	170 V	35 J	185 V	85 °C	-40 °C	Through Hole	225 V	3.5 kA	430 pF	130 V	10 mm
Panasonic Industrial Automation Sales ERZ-V10D101	100 V	Disc 11.5mm	1	85 V	17 J	90 V	85 °C	-40 °C	Through Hole	110 V	3.5 kA	1700 pF	60 V
Panasonic Industrial Automation Sales ERZ-V10D331	330 V	Disc 11.5mm	1	270 V	58 J	297 V	85 °C	-40 °C	Through Hole	363 V	3.5 kA	300 pF
Panasonic Industrial Automation Sales ERZ-V10D911	910 V	Disc	1	745 V		819 V	85 °C	-40 °C	Through Hole	1.001 kV	3.5 kA	120 pF	550 V	12.5 mm
Panasonic Industrial Automation Sales ERZ-V10V390CS	39 V	Disc	1	31 V	5.6 J	35 V	85 °C	-40 °C	Through Hole	43 V	1 kA	5200 pF	25 V	10 mm
