9746 Series
Manufacturer: Belden Inc.
Beta
⌘K

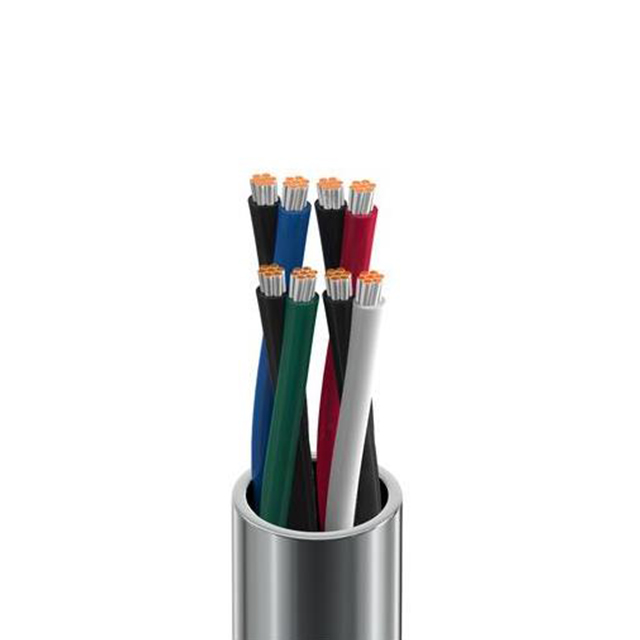

MULTI-PAIR 8CON 22AWG CHROM
| Part | Wire Gauge | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Cable Type | Conductor Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 22 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 0.813 mm | 0.032 in | Audio Control Instrumentation | 80 °C | -20 ░C | 30 AWG | 7 | 8 | 0.281 in | 7.14 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Multi-Pair | Copper Tinned | UL Style 2576 |
