BC817 Series

Catalog

SOT-23, TRANSISTOR

Part	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Transistor Type	Current - Collector (Ic) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Power - Max [Max]	Qualification	Grade
Panjit International Inc. BC817-40_R1_00001	SOT-323	250	SC-70 SOT-323	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz

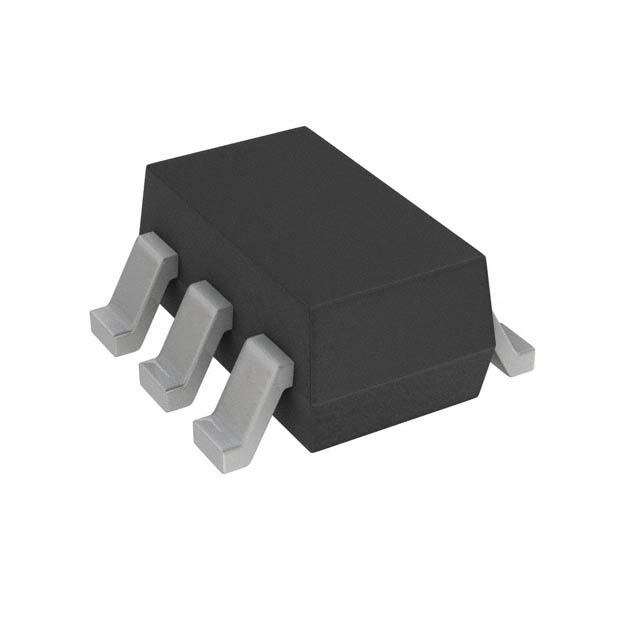

Panjit International Inc. BC817DPN-AU_R1_000A1	SOT-23-6	100	SOT-23-6	1 NPN 1 PNP	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz	330 mW	AEC-Q101	Automotive
Panjit International Inc. BC817-25-AU_R1_000A1	SOT-23	160	SC-59 SOT-23-3 TO-236-3	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz	330 mW	AEC-Q101	Automotive
Panjit International Inc. BC817-16-AU_R1_000A1	SOT-23	100	SC-59 SOT-23-3 TO-236-3	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz	330 mW	AEC-Q101	Automotive
Panjit International Inc. BC817-25_R1_00001	SOT-323	160	SC-70 SOT-323	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz
Panjit International Inc. BC817-40W_R1_00001	SOT-323	250	SC-70 SOT-323	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz
Panjit International Inc. BC817-25W-AU_R1_000A1	SOT-323	160	SC-70 SOT-323	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz		AEC-Q101	Automotive
Panjit International Inc. BC817DPN_R1_00001	SOT-23-6	100	SOT-23-6	1 NPN 1 PNP	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz	330 mW
Panjit International Inc. BC817-40-AU_R1_000A1	SOT-23	250	SC-59 SOT-23-3 TO-236-3	NPN	500 mA	Surface Mount	150 °C	-55 °C	100 nA	700 mV	45 V	100 MHz	330 mW	AEC-Q101	Automotive
