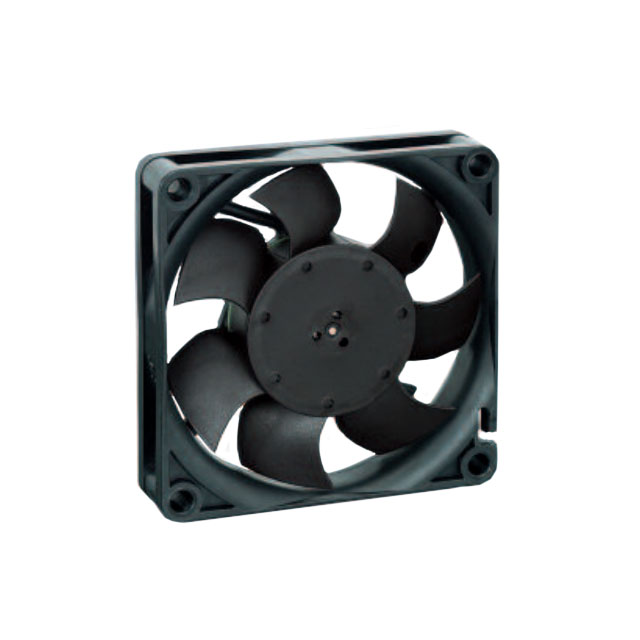

712F Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FAN AXIAL SINTEC BEARING 12V 8V TO 13.8V 21.2CFM 32DB 70 X 70 X 15MM
| Part | Material - Frame | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Voltage - Rated | Width [y] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Air Flow | Air Flow | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Fan Type | RPM | Termination | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 8 V | 13.8 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 12 VDC | 15 mm | Speed Sensor (Tach) | -20 ░C | 70 °C | 32 dB | 0.594 m³/min | 21.2 CFM | 1.1 W | 70 mm | 70 mm | Tubeaxial | 4300 RPM | 3 Position Rectangular Connector | Sintec |
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 8 V | 13.8 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 12 VDC | 15 mm | Speed Sensor (Tach) | -20 ░C | 70 °C | 25 dB(A) | 600 mW | 70 mm | 70 mm | Tubeaxial | 3300 RPM | 3 Position Rectangular Connector | Sintec |
