FRT.00 Series
Manufacturer: LEMO
Beta
⌘K

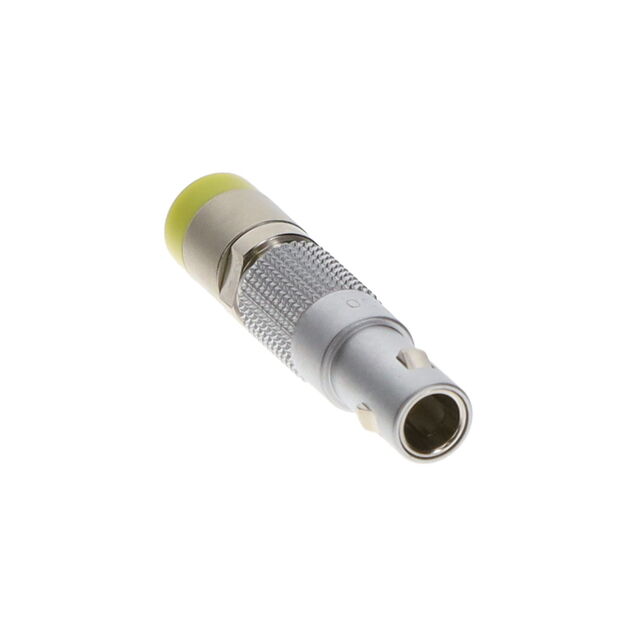

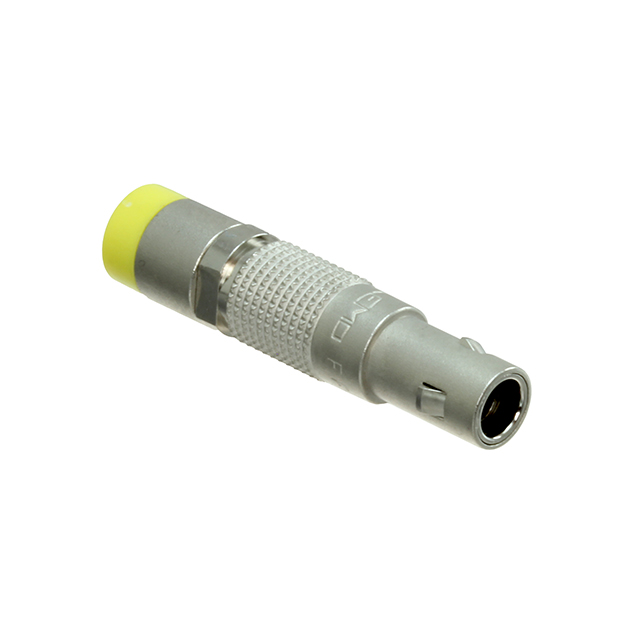

CONN NIMCAMA PLG STR 50OHM SOLDR
| Part | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Mounting Type | Fastening Type | Features | Connector Style | Housing Color | Ingress Protection | Shield Termination | Connector Type | Center Contact Material | Number of Ports | Impedance | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 5000 | 700 VDC | Nickel | Gold | -55 C | 260 °C | Brass | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Push-Pull | Shorted Resistor | NIM-CAMAC CD/N 549 | Silver | IP50 - Dust Protected | Solder | Plug Male Pin | Brass | 1 | 50 Ohms | Solder |
 LEMO | 5000 | 700 VDC | Chrome | Gold | -55 C | 260 °C | Brass | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Push-Pull | 50Ohm Resistor | NIM-CAMAC CD/N 549 | Silver | IP50 - Dust Protected | Solder | Plug Male Pin | Brass | 1 | 50 Ohms | Solder |
 LEMO | 5000 | 700 VDC | Nickel | Gold | -55 C | 260 °C | Brass | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Push-Pull | 50Ohm Resistor | NIM-CAMAC CD/N 549 | Silver | IP50 - Dust Protected | Solder | Plug Male Pin | Brass | 1 | 50 Ohms | Solder |
