3009Y Series

Catalog

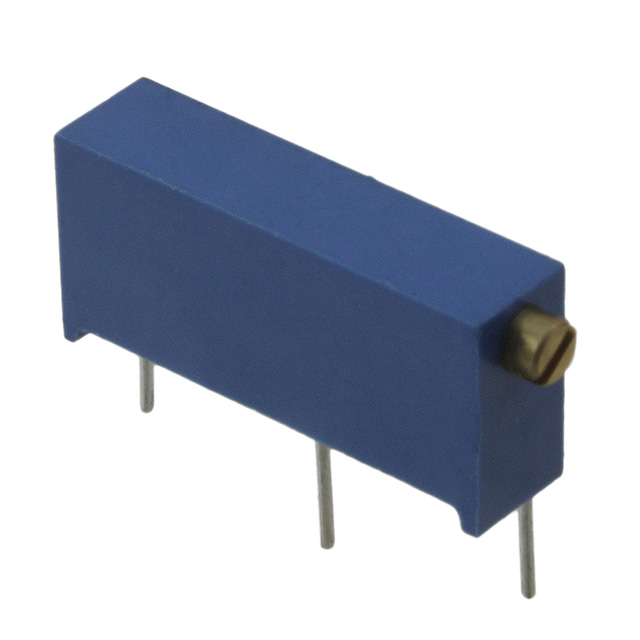

TRIMMER 200OHM 0.75W PC PIN SIDE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Turns	Resistance	Mounting Type	Resistive Material	Power (Watts)	Power (Watts)	Adjustment Type	Tolerance	Termination Style	Temperature Coefficient
Bourns Inc. 3009Y-1-201LF	8.98 mm	4.83 mm	0.19 in	0.354 in	15	200 Ohms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-104	8.98 mm	4.83 mm	0.19 in	0.354 in	15	100 kOhms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-102	8.98 mm	4.83 mm	0.19 in	0.354 in	15	1000 Ohms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-103Z	8.98 mm	4.83 mm	0.19 in	0.354 in	15	10000 Ohms	Panel Mount Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-504	8.98 mm	4.83 mm	0.19 in	0.354 in	15		Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-253LF	8.98 mm	4.83 mm	0.19 in	0.354 in	15	25 kOhms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-500	8.98 mm	4.83 mm	0.19 in	0.354 in	15	50 Ohms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-501	8.98 mm	4.83 mm	0.19 in	0.354 in	15	0.5 kOhms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-202	8.98 mm	4.83 mm	0.19 in	0.354 in	15	2 kOhms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
Bourns Inc. 3009Y-1-201	8.98 mm	4.83 mm	0.19 in	0.354 in	15	200 Ohms	Through Hole	Cermet	3/4W	0.75 W	Side Adjustment	10 %	PC Pins	100 ppm/°C
