R7FS1JA783 Series

32MHz Arm Cortex-M0+ CPU

Manufacturer: Renesas Electronics Corporation

Catalog

32MHz Arm Cortex-M0+ CPU

Part	Core Processor	Program Memory Size	Mounting Type	Data Converters [custom]	Data Converters [custom]	Supplier Device Package	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	EEPROM Size	Peripherals	Speed	Number of I/O	Connectivity	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Package / Case	RAM Size	EEPROM Size	Data Converters
Renesas Electronics Corporation R7FS1JA782A01CBT#BC0	ARM® Cortex®-M23	256 KB	Surface Mount	1x12b 2x8b	2x24b 5x16b	36-LFBGA (5x5)	FLASH	5.5 V	1.6 V	8 K	DMA PWM WDT	48 MHz	22	CANbus I2C SCI SPI USB	32-Bit	85 °C	-40 °C	Internal	36-LFBGA
Renesas Electronics Corporation R7FS1JA783A01CFJ#AA0	ARM® Cortex®-M23	256 KB	Surface Mount	1x12b 2x8b	2x24b 5x16b	32-LQFP (7x7)	FLASH	5.5 V	1.6 V	8 K	DMA PWM WDT	48 MHz	20	CANbus I2C SCI SPI	32-Bit Single-Core	105 °C	-40 °C	Internal	32-LQFP
Renesas Electronics Corporation R7FS124773A01CNE#AA1	ARM® Cortex®-M0+	128 KB	Surface Mount			48-HWQFN (7x7)	FLASH	5.5 V	1.6 V		LVD POR PWM WDT	32 MHz	35	CANbus I2C SCI SPI UART/USART USB	32-Bit Single-Core	105 °C	-40 °C	Internal	48-WFQFN Exposed Pad	16 K	4K x 8	A/D 14x12b SAR D/A 1x12b
Renesas Electronics Corporation R7FS124773A01CNB#BA1	ARM® Cortex®-M0+	128 KB	Surface Mount			64-HWQFN (8x8)	FLASH	5.5 V	1.6 V		LVD POR PWM WDT	32 MHz	51	CANbus I2C SCI SPI UART/USART USB	32-Bit	105 °C	-40 °C	Internal	64-WFQFN Exposed Pad	16 K	4K x 8	A/D 18x14b SAR D/A 1x12b
Renesas Electronics Corporation R7FS124773A01CNB#AC0	ARM® Cortex®-M0+	128 KB	Surface Mount			64-HWQFN (8x8)	FLASH	5.5 V	1.6 V		LVD POR PWM WDT	32 MHz	51	CANbus I2C SCI SPI UART/USART USB	32-Bit Single-Core	105 °C	-40 °C	Internal	64-WFQFN Exposed Pad	16 K	4K x 8	A/D 18x14b D/A 1x12b
Renesas Electronics Corporation R7FS128783A01CNE#BA1	ARM® Cortex®-M0+	256 KB	Surface Mount			48-HWQFN (7x7)	FLASH	5.5 V	1.6 V		DMA LVD POR PWM WDT	32 MHz	37	CANbus DALI I2C SCI SPI UART/USART USB	32-Bit	105 °C	-40 °C	Internal	48-WFQFN Exposed Pad	24 K	4K x 8

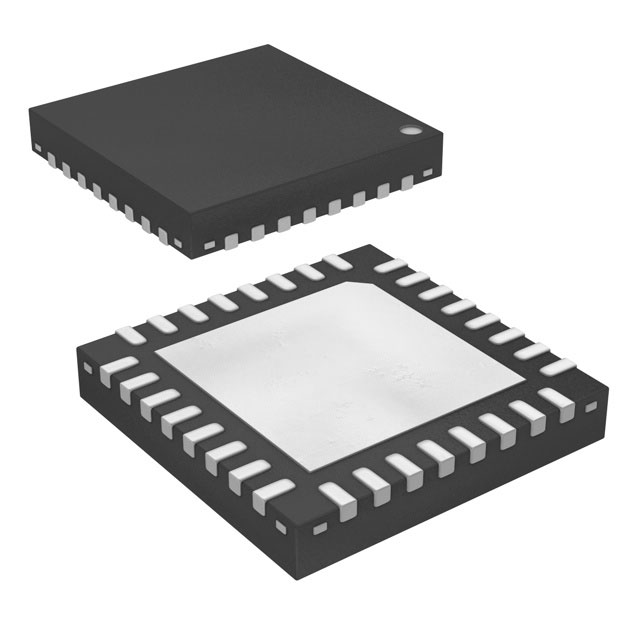

Renesas Electronics Corporation R7FS128783A01CNG#BA1	ARM® Cortex®-M0+	256 KB	Surface Mount			32-HWQFN (5x5)	FLASH	5.5 V	1.6 V		DMA LVD POR PWM WDT	32 MHz	24	CANbus DALI I2C SCI SPI UART/USART USB	32-Bit	105 °C	-40 °C	Internal		24 K	4K x 8	A/D 10x14b SAR D/A 3x8b
Renesas Electronics Corporation R7FS1JA783A01CNE#BA0	ARM® Cortex®-M23	256 KB	Surface Mount			48-HWQFN (7x7)	FLASH	5.5 V	1.6 V	8 K	DMA PWM WDT	48 MHz	33 I/O	CANbus I2C SCI SPI USB	32-Bit	105 °C	-40 °C	Internal	48-WFQFN Exposed Pad			1x12b 6x24b Sigma-Delta A/D 12x16b D/A 2x8b
Renesas Electronics Corporation R7FS124773A01CFL#HA1	ARM® Cortex®-M0+	128 KB	Surface Mount			48-LFQFP (7x7)	FLASH	5.5 V	1.6 V		LVD POR PWM WDT	32 MHz	35	CANbus I2C SCI SPI UART/USART USB	32-Bit Single-Core	105 °C	-40 °C	Internal	48-LQFP	16 K	4K x 8	A/D 14x14b SAR D/A 1x12b
Renesas Electronics Corporation R7FS124772A01CLM#AC0	ARM® Cortex®-M0+	128 KB	Surface Mount			36-WFLGA (4x4)	FLASH	5.5 V	1.6 V		LVD POR PWM WDT	32 MHz	25	CANbus I2C SCI SPI UART/USART USB	32-Bit Single-Core	85 °C	-40 °C	Internal	36-WFLGA	16 K	4K x 8	11x14b 1x12b

Catalog

32MHz Arm Cortex-M0+ CPU

Description

Uniquely suited for simple battery-operated sensing applications that require low power operation modes and fast wake-up times, the S124 MCU Group has 128KB of flash memory and 16KB of SRAM. It includes a 14-bit A/D converter, 12-bit D/A converter, and a Capacitive Touch Sensing Unit (CTSU), in addition to safety and security features. Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas. Download SSP
