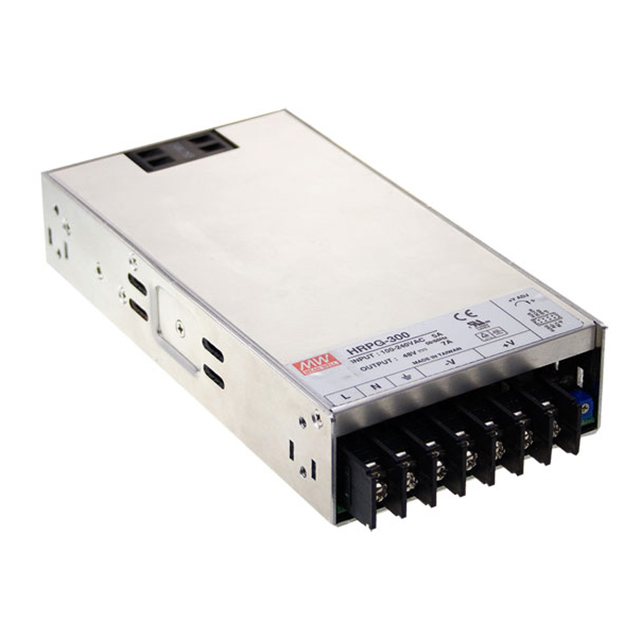

HRPG-300 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 7.5V 300W
| Part | Minimum Load Required | Applications | Type | Current - Output 1 | Voltage - Isolation | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Power (Watts) | Voltage - Output 1 | Mounting Type | Current - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | Enclosed | 40 A | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 199 mm | 1.61 " | 105 mm | 41 mm | 4.13 in | 7.83 in | 1 | CB CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | 86 % | 300 W | 7.5 V | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | Enclosed | 27 A | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 199 mm | 1.61 " | 105 mm | 41 mm | 4.13 in | 7.83 in | 1 | CB CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | 88 % | 324 W | 12 V | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | Enclosed | 7 A | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 199 mm | 1.61 " | 105 mm | 41 mm | 4.13 in | 7.83 in | 1 | CB CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | 89 % | 336 W | 48 V | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | Enclosed | 22 A | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 199 mm | 1.61 " | 105 mm | 41 mm | 4.13 in | 7.83 in | 1 | CB CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | 88 % | 330 W | 15 V | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | Enclosed | 3000 V | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 199 mm | 1.61 " | 105 mm | 41 mm | 4.13 in | 7.83 in | 1 | CB CE cURus TUV | 85 VAC 120 VDC | 264 VAC 370 VDC | 87 % | 336 W | 24 V | Chassis Mount | 14 A |
